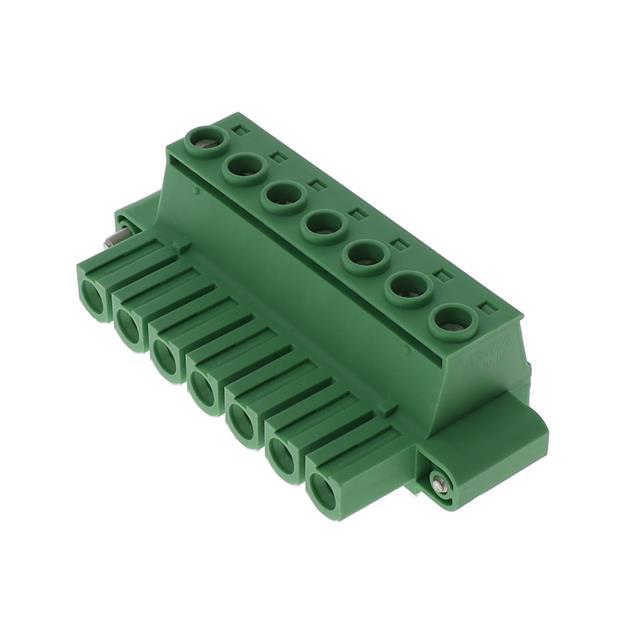

Phoenix Contact 1913620
Product Information
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M4
Wire Strip Length:
12mm
Type:
Plug, Female Sockets
Number of Positions:
7
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.75-10mm²
Plug Wire Entry:
180°
Insulation Height:
1.085" (27.55mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
41A
Wire Gauge or Range - AWG:
8-20 AWG
Voltage - UL:
600 V
Torque - Screw:
1.2-1.5 Nm (10.6-13.3 Lb-In)
standardLeadTime:
7 Weeks
Contact Mating Finish:
Silver
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PC
Positions Per Level:
7
Header Orientation:
-
Current - UL:
50 A
Pitch:
0.400" (10.16mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1913620 on website for other similar products.
We accept all major payment methods for all products including ET10798168. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1913620 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1913620. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1913620.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10798168 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10798168.
Yes. We ship 1913620 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1913620. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m4. The typical length of the wire strip is 12mm. It comes in plug, female sockets configuration. The product carries possible position value of 7. A 0.75-10mm² of wire gauge. It also a 180° plug wire entry. 1.085" (27.55mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 41a. While 8-20 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It carries torque - screw values of 1.2-1.5 nm (10.6-13.3 lb-in). It has a long 7 weeks standard lead time. The mating finish of the contact is silver. The nominal voltage of the product is 1 kv. The splendid features of the product include mating flange. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon pc, is a highly preferred choice for users. It has 7 positions each level. The typical current includes 50 a. Moreover, the product is 0.400" (10.16mm). The product carries 1 levels. The product is designated with the ear99 code number.
