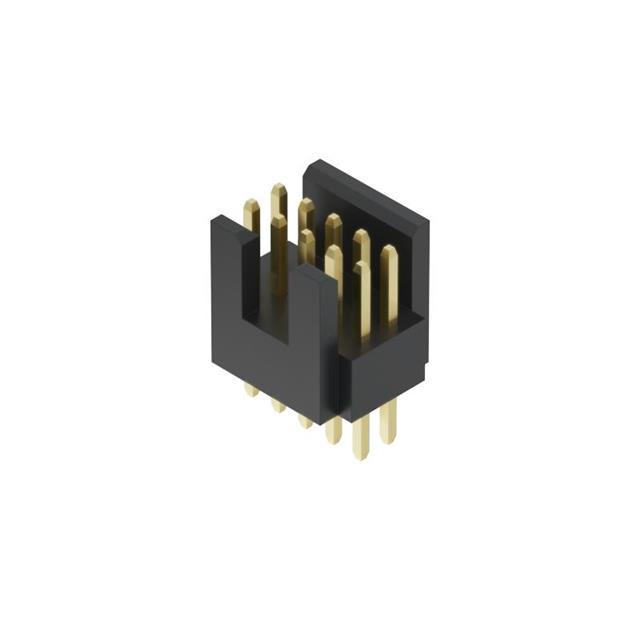

GCT BD120-10-A-0305-0229-L-B
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
10
Overall Contact Length:
0.309" (7.86mm)
Insulation Height:
0.098" (2.50mm)
Voltage Rating:
-
Shrouding:
Shrouded - 2 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.120" (3.05mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
1A per Contact
Contact Length - Post:
0.090" (2.29mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Keying Slot, Pick and Place
Mounting Type:
Through Hole
Series:
BD120
Contact Type:
Male Pin
Contact Material:
Brass
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search BD120-10-A-0305-0229-L-B on website for other similar products.
We accept all major payment methods for all products including ET24460647. Please check your shopping cart at the time of order.
You can order GCT brand products with BD120-10-A-0305-0229-L-B directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of GCT BD120-10-A-0305-0229-L-B. You can also check on our website or by contacting our customer support team for further order details on GCT BD120-10-A-0305-0229-L-B.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24460647 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "GCT" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24460647.
Yes. We ship BD120-10-A-0305-0229-L-B Internationally to many countries around the world.
This is manufactured by GCT. The manufacturer part number is BD120-10-A-0305-0229-L-B. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 10. The product has a 0.309" (7.86mm) of overall contact lentgh. 0.098" (2.50mm) of insulation height. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in tape & reel (tr) package . It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.120" (3.05mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 9 weeks standard lead time. Additionally, the product's output is 1a per contact. 0.090" (2.29mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include keying slot, pick and place. The product is available in through hole configuration. The product bd120, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.
