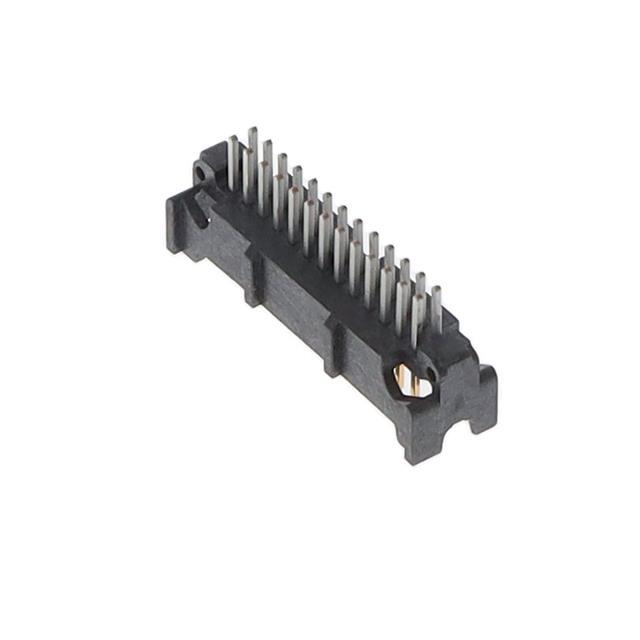

3M 45226-600230
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
26
Overall Contact Length:
-
Insulation Height:
0.222" (5.64mm)
Voltage Rating:
125VAC
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
-
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Box
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
3.00µin (0.076µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
21 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.094" (2.40mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
452
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
45226
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 45226-600230 on website for other similar products.
We accept all major payment methods for all products including ET23506040. Please check your shopping cart at the time of order.
You can order 3M brand products with 45226-600230 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 45226-600230. You can also check on our website or by contacting our customer support team for further order details on 3M 45226-600230.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23506040 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23506040.
Yes. We ship 45226-600230 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 45226-600230. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 26. 0.222" (5.64mm) of insulation height. Moreover, the product has a nominal 125vac voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in box package . It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 21 weeks standard lead time. Additionally, the product's output is 1a. 0.094" (2.40mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product 452, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 45226, a base product number of the product. The product is designated with the ear99 code number.
