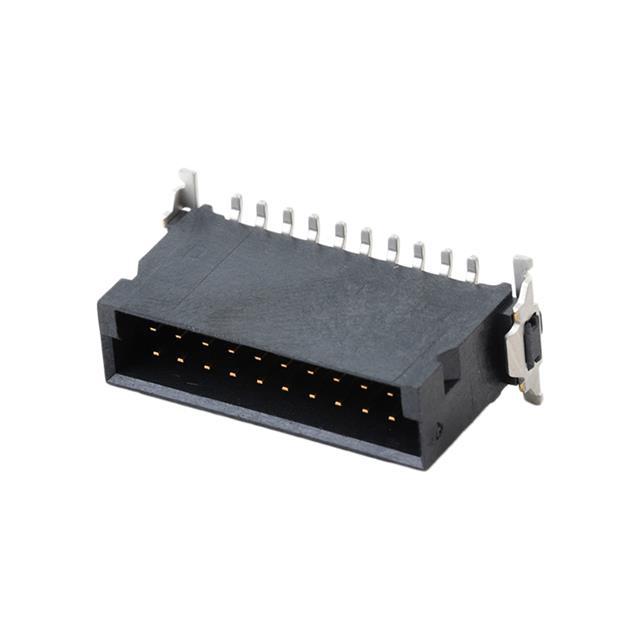

Greenconn GBEC207-1079B001C1AF
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
20
Overall Contact Length:
-
Insulation Height:
0.325" (8.25mm)
Voltage Rating:
-
REACH Status:
See Individual Parts
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
4 Weeks
Current Rating (Amps):
1.7A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
GBEC207
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search GBEC207-1079B001C1AF on website for other similar products.
We accept all major payment methods for all products including ET23305620. Please check your shopping cart at the time of order.
You can order Greenconn brand products with GBEC207-1079B001C1AF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Greenconn GBEC207-1079B001C1AF. You can also check on our website or by contacting our customer support team for further order details on Greenconn GBEC207-1079B001C1AF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23305620 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Greenconn" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23305620.
Yes. We ship GBEC207-1079B001C1AF Internationally to many countries around the world.
This is manufactured by Greenconn. The manufacturer part number is GBEC207-1079B001C1AF. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 20. 0.325" (8.25mm) of insulation height. In addition, it is see individual parts. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in tape & reel (tr) package . It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 4 weeks standard lead time. Additionally, the product's output is 1.7a per contact. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product is available in surface mount configuration. The product gbec207, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.
