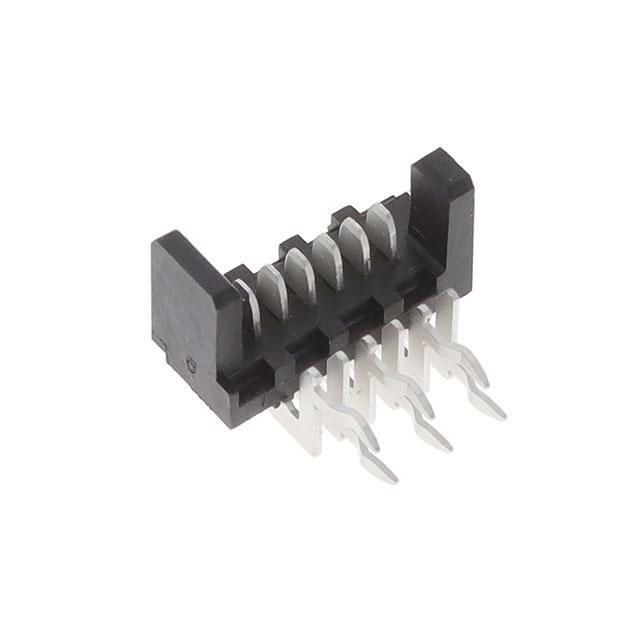

Cvilux USA CA3506H1100-NH

CA3506H1100-NH Cvilux USA
Cvilux USA

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
6
Overall Contact Length:
-
Insulation Height:
0.197" (5.00mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 2 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Rectangular
Contact Finish Thickness - Mating:
-
Voltage Rating:
250VAC/DC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.085" (2.15mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Press-Fit, Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
1.2A
Contact Length - Post:
0.124" (3.15mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
CA35
Packaging:
Tube
Mated Stacking Heights:
-
Contact Type:
Male Blade
Contact Material:
Brass
Insulation Material:
Polyamide (PA6T), Nylon 6T, Glass Filled
ECCN:
EAR99
Checking for live stock

This is manufactured by Cvilux USA. The manufacturer part number is CA3506H1100-NH. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 6. 0.197" (5.00mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 250vac/dc voltage rating. header Connector type offer robust functionality. It is 0.085" (2.15mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features press-fit, solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 1.2a. 0.124" (3.15mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product ca35, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has typical contact type of male blade. The product is made from sturdy brass materials. It has a robust polyamide (pa6t), nylon 6t, glass filled insulation material. The product is designated with the ear99 code number.

pdf icon
SPCA016B(Datasheets)
pdf icon
CA3503SA(Datasheets)
pdf icon
Cvilux RoHS3 Statement(Environmental Information)
