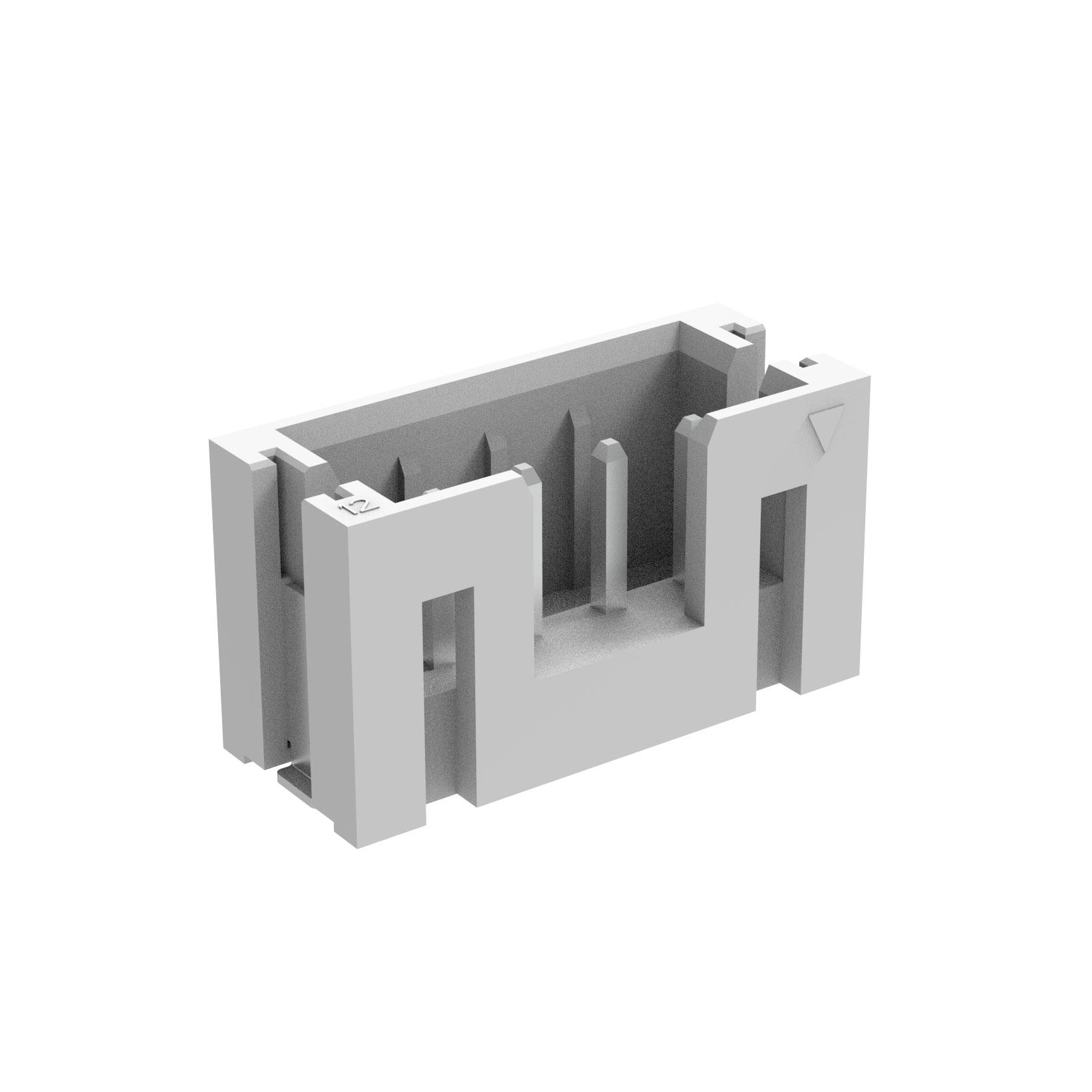

Amphenol ICC (Commercial Products) G861F04131TEU
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
4
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.256" (6.50mm)
Voltage Rating:
100VAC/DC
edacadModel:
G861F04131TEU Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/13683056
Insulation Color:
White
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA9T), Nylon 9T
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.138" (3.50mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
-
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
G861
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
G861F04
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search G861F04131TEU on website for other similar products.
We accept all major payment methods for all products including ET20919622. Please check your shopping cart at the time of order.
You can order Amphenol ICC (Commercial Products) brand products with G861F04131TEU directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol ICC (Commercial Products) G861F04131TEU. You can also check on our website or by contacting our customer support team for further order details on Amphenol ICC (Commercial Products) G861F04131TEU.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20919622 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol ICC (Commercial Products)" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20919622.
Yes. We ship G861F04131TEU Internationally to many countries around the world.
This is manufactured by Amphenol ICC (Commercial Products). The manufacturer part number is G861F04131TEU. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -25°c ~ 85°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 4. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.256" (6.50mm) of insulation height. Moreover, the product has a nominal 100vac/dc voltage rating. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, white is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa9t), nylon 9t insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. It is 0.138" (3.50mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. The product features solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is 2a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount configuration. The product g861, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to g861f04, a base product number of the product. The product is designated with the ear99 code number.
