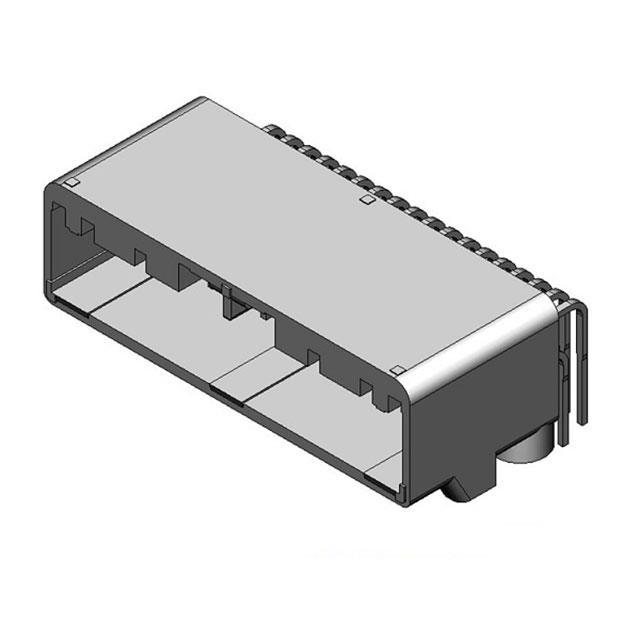

JAE Electronics MX84B036NF1
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
36
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.626" (15.90mm)
Voltage Rating:
-
edacadModel:
MX84B036NF1 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/12697329
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Tube
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
0.303" (7.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
-
Fastening Type:
-
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.087" (2.20mm)
Ingress Protection:
-
Features:
Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
MX84B
Insulation Material:
Syndiotactic Polystyrene (SPS), Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
MX84B
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MX84B036NF1 on website for other similar products.
We accept all major payment methods for all products including ET20010165. Please check your shopping cart at the time of order.
You can order JAE Electronics brand products with MX84B036NF1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of JAE Electronics MX84B036NF1. You can also check on our website or by contacting our customer support team for further order details on JAE Electronics MX84B036NF1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20010165 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "JAE Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20010165.
Yes. We ship MX84B036NF1 Internationally to many countries around the world.
This is manufactured by JAE Electronics. The manufacturer part number is MX84B036NF1. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product carries possible position value of 36. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.626" (15.90mm) of insulation height. It comes in 2 of rows. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in tube package . It carries 0.118" (3.00mm) of row spacing. header Connector type offer robust functionality. It is 0.303" (7.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. The product features solder termination style. It has a long 15 weeks standard lead time. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.087" (2.20mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in through hole, right angle configuration. The product mx84b, is a highly preferred choice for users. It has a robust syndiotactic polystyrene (sps), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to mx84b, a base product number of the product. The product is designated with the ear99 code number.
