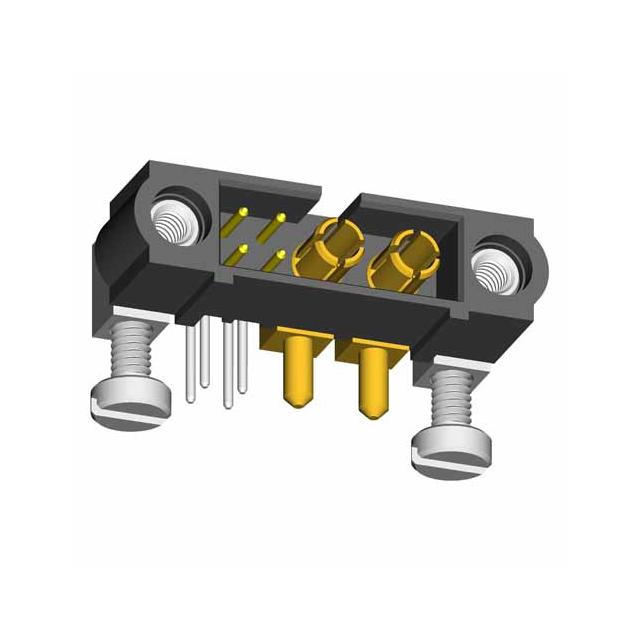

Harwin Inc. M80-5L10422M5-02-333-00-000

M80-5L10422M5-02-333-00-000 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
6 (4 + 2 Power)
Overall Contact Length:
-
title:
M80-5L10422M5-02-333-00-000
Insulation Height:
0.218" (5.55mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
800V
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
29.5µin (0.75µm)
Fastening Type:
Threaded
Termination:
Solder
Current Rating (Amps):
2.2A per Contact
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
-
Ingress Protection:
-
Features:
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Mounting Type:
Through Hole, Right Angle
Series:
Datamate Mix-Tek
Packaging:
Bulk
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
M80-5L1
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M80-5L10422M5-02-333-00-000. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 6 (4 + 2 power). 0.218" (5.55mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. Moreover, the product has a nominal 800v voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 29.5µin (0.75µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, threaded is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2.2a per contact. 0.118" (3.00mm) is the given possible contact length (post) values. The splendid features of the product include keying slot, mating flange, mounting flange, mounting hardware. The product is available in through hole, right angle configuration. The product datamate mix-tek, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyphenylene sulfide (pps), glass filled insulation material. It has typical contact type of male pin. Moreover, it corresponds to m80-5l1, a base product number of the product. The product is designated with the ear99 code number.
