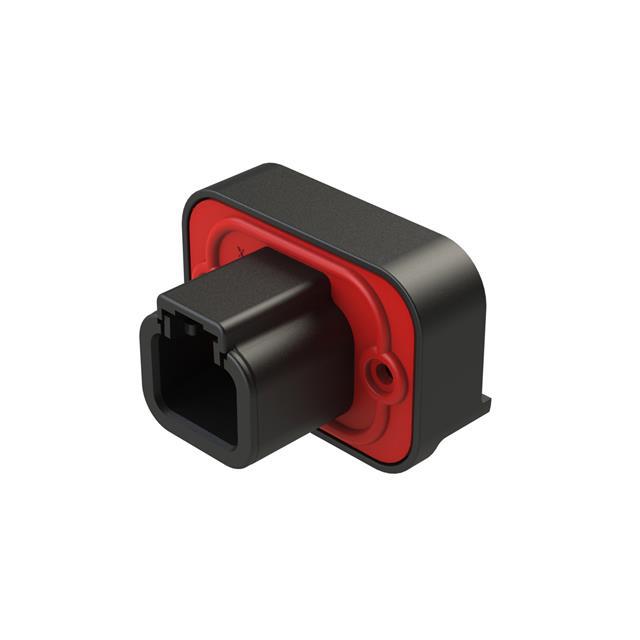

Amphenol Sine Systems Corp ATP15-2P-BM04BLK

ATP15-2P-BM04BLK Amphenol Sine Systems Corp
Amphenol Sine Systems Corp

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
2
Contact Finish - Post:
Tin
edacadModel:
ATP15-2P-BM04BLK Models
Overall Contact Length:
-
title:
ATP15-2P-BM04BLK
Insulation Height:
1.339" (34.00mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
-
edacadModelUrl:
/en/models/10658495
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Receptacle
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
25A
Contact Length - Post:
0.181" (4.60mm)
Pitch - Mating:
0.264" (6.71mm)
Ingress Protection:
IP67
Features:
Board Lock, Mounting Flange, Potting Wall, Sealed
Mounting Type:
Panel Mount, Through Hole
Series:
BoardLock™ ATP
Packaging:
Bulk
Insulation Material:
Thermoplastic
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
ATP15-2P
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Sine Systems Corp. The manufacturer part number is ATP15-2P-BM04BLK. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 2. It has possible tin contact post finishing. 1.339" (34.00mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It has a typical circular shape. Moreover, the product has a nominal 250v voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 25a. 0.181" (4.60mm) is the given possible contact length (post) values. It has 0.264" (6.71mm) of pitch-mating value. It is IP rated with ip67. The splendid features of the product include board lock, mounting flange, potting wall, sealed. The product is available in panel mount, through hole configuration. The product boardlock™ atp, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust thermoplastic insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to atp15-2p, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ATP Series(Datasheets)
pdf icon
BoardLock Family(Datasheets)
pdf icon
ATP15-2P-BM04BLK Drawing(Datasheets)
pdf icon
Material color chg 10/NOV/2023(PCN Design/Specification)
