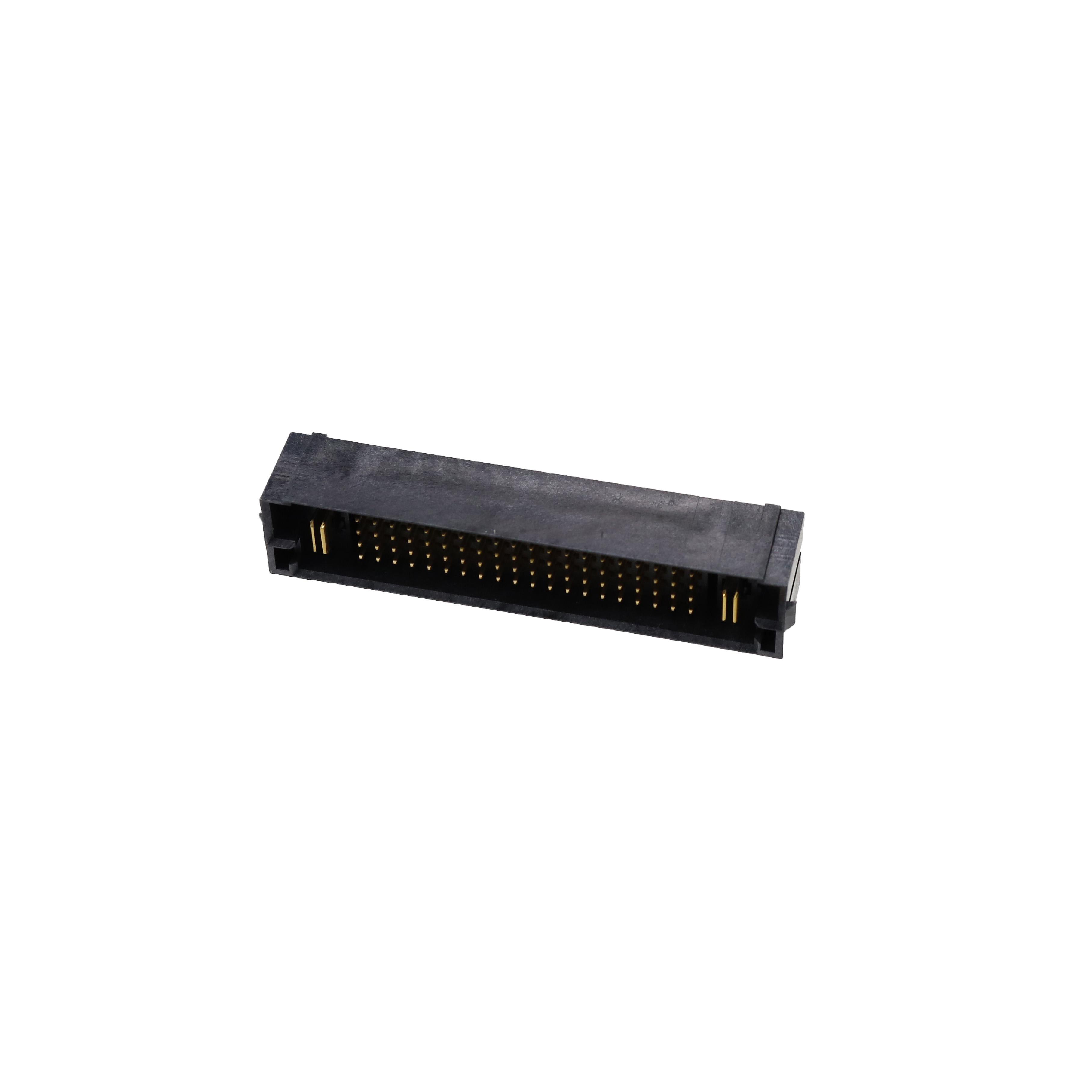

Samtec Inc. MPTC-01-80-01-6.30-01-L-V-LC
Product Information
The MPTC-01-80-01-6.30-01-L-V-LC is a high-density connector header for through-hole mounting featuring an 82-position layout. This configuration ensures dependable interconnect solutions for diverse applications, offering benefits like secure PCB mounting, efficient signal routing, and low contact resistance.
Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
82 (80 + 2 Power)
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.448" (11.38mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
MPTC-01-80-01-6.30-01-L-V-LC Models
Applications:
-
Number of Rows:
4
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10507309
Insulation Color:
Black
Contact Shape:
Rectangular, Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tray
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.107" (2.71mm)
Pitch - Mating:
-
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
PowerStrip™ 30 MPTC
Contact Type:
Male Blade; Male Pin
Contact Material:
Copper Alloy, Phosphor Bronze
Base Product Number:
MPTC-01
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MPTC-01-80-01-6.30-01-L-V-LC on website for other similar products.
We accept all major payment methods for all products including ET18865268. Please check your shopping cart at the time of order.
You can order Samtec Inc. brand products with MPTC-01-80-01-6.30-01-L-V-LC directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Samtec Inc. MPTC-01-80-01-6.30-01-L-V-LC. You can also check on our website or by contacting our customer support team for further order details on Samtec Inc. MPTC-01-80-01-6.30-01-L-V-LC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18865268 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Samtec Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET18865268.
Yes. We ship MPTC-01-80-01-6.30-01-L-V-LC Internationally to many countries around the world.
The Samtec Inc. MPTC-01-80-01-6.30-01-L-V-LC is a dense connector header created for through-hole mounting. Its 82-position design (80 signal contacts + 2 power contacts) provides a reliable solution for various interconnect applications.
Unique Features:
Application Versatility of Samtec Inc. MPTC-01-80-01-6.30-01-L-V-LC:
Significant Benefits:
