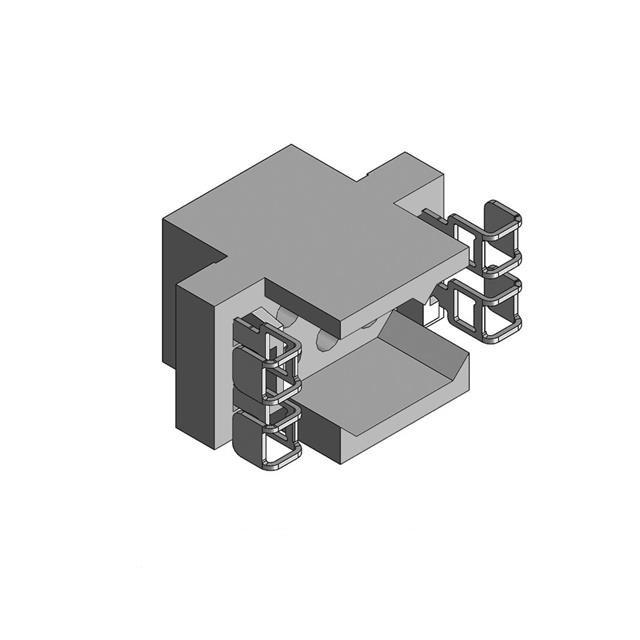

Anderson Power Products, Inc. PM216MBALOO
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin Alloy
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 180°C
Contact Finish Thickness - Post:
-
Number of Positions:
16
Overall Contact Length:
-
Insulation Height:
0.600" (15.24mm)
Voltage Rating:
600V
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 2 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyphenylene Sulfide (PPS)
Package:
Box
Row Spacing - Mating:
0.197" (5.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Latch Lock
Termination:
Solder
Current Rating (Amps):
30A
Contact Length - Post:
0.150" (3.81mm)
Pitch - Mating:
0.197" (5.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
PowerMod®
Contact Type:
Male Pin, Power
Contact Material:
Copper Alloy
Base Product Number:
PM216MBAL
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PM216MBALOO on website for other similar products.
We accept all major payment methods for all products including ET18857445. Please check your shopping cart at the time of order.
You can order Anderson Power Products, Inc. brand products with PM216MBALOO directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Anderson Power Products, Inc. PM216MBALOO. You can also check on our website or by contacting our customer support team for further order details on Anderson Power Products, Inc. PM216MBALOO.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18857445 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Anderson Power Products, Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET18857445.
Yes. We ship PM216MBALOO Internationally to many countries around the world.
This is manufactured by Anderson Power Products, Inc.. The manufacturer part number is PM216MBALOO. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin alloy contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 180°c operating temperature range. The product carries possible position value of 16. 0.600" (15.24mm) of insulation height. Moreover, the product has a nominal 600v voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical circular shape. It has a robust polyphenylene sulfide (pps) insulation material. It is shipped in box package . It carries 0.197" (5.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 30a. 0.150" (3.81mm) is the given possible contact length (post) values. It has 0.197" (5.00mm) of pitch-mating value. The product is available in through hole configuration. The product powermod®, is a highly preferred choice for users. It has typical contact type of male pin, power. The product is made from sturdy copper alloy materials. Moreover, it corresponds to pm216mbal, a base product number of the product. The product is designated with the ear99 code number.
