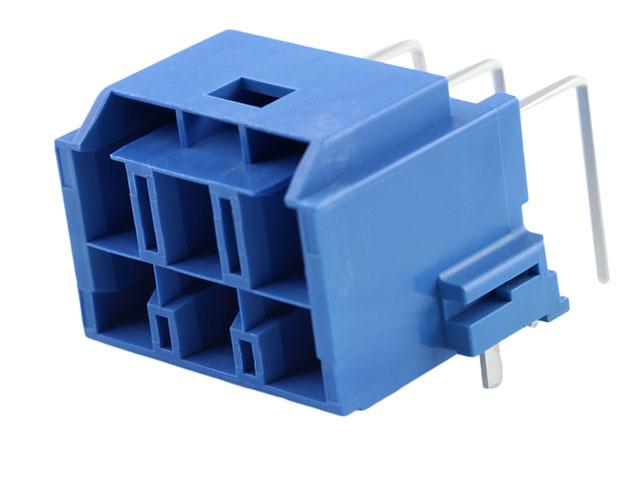

Molex 2035551026
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
50.0µin (1.27µm)
Number of Positions:
6
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.598" (15.19mm)
Voltage Rating:
600VAC/DC
edacadModel:
2035551026 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10718234
Insulation Color:
Blue
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
50.0µin (1.27µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
11.8A
Contact Length - Post:
0.150" (3.81mm)
Pitch - Mating:
0.256" (6.50mm)
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Through Hole, Right Angle
Series:
CP-6.5 203555
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
203555
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2035551026 on website for other similar products.
We accept all major payment methods for all products including ET18746082. Please check your shopping cart at the time of order.
You can order Molex brand products with 2035551026 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 2035551026. You can also check on our website or by contacting our customer support team for further order details on Molex 2035551026.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18746082 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18746082.
Yes. We ship 2035551026 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 2035551026. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 50.0µin (1.27µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.598" (15.19mm) of insulation height. Moreover, the product has a nominal 600vac/dc voltage rating. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, blue is the insulation color of the product. It has a typical rectangular shape. It is shipped in tube package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 50.0µin (1.27µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 11.8a. 0.150" (3.81mm) is the given possible contact length (post) values. It has 0.256" (6.50mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in through hole, right angle configuration. The product cp-6.5 203555, is a highly preferred choice for users. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 203555, a base product number of the product. The product is designated with the ear99 code number.
