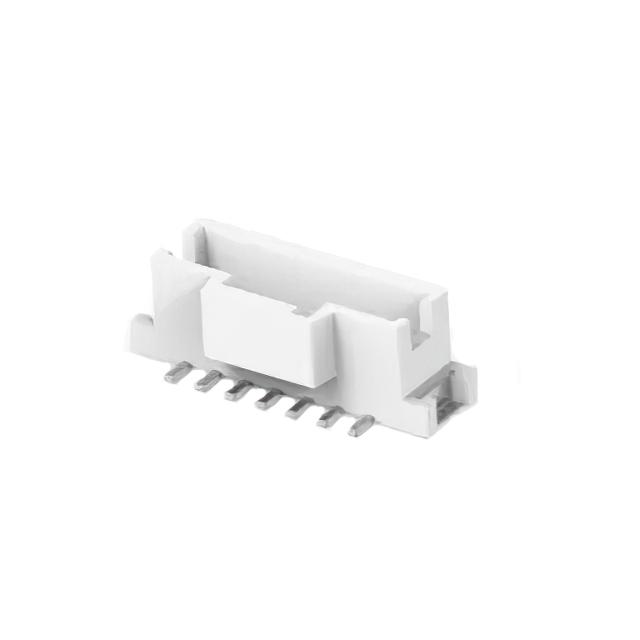

TE Connectivity AMP Connectors 1-2232829-7

1-2232829-7 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
7
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.252" (6.40mm)
Voltage Rating:
50VAC
REACH Status:
Vendor Undefined
edacadModel:
1-2232829-7 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10462976
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
2 (1 Year)
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
25 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount
Series:
Grace Inertia 2.0
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
2232829
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1-2232829-7. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 78.7µin (2.00µm) of post thickness. The product carries possible position value of 7. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.252" (6.40mm) of insulation height. Moreover, the product has a nominal 50vac voltage rating. In addition, it is vendor undefined. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 2 (1 year). However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 25 weeks standard lead time. Additionally, the product's output is 2a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount configuration. The product grace inertia 2.0, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 2232829, a base product number of the product. The product is designated with the ear99 code number.
