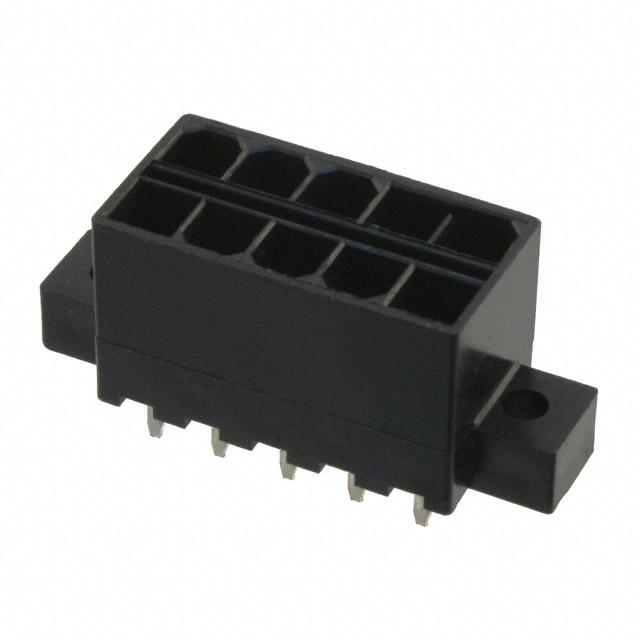

Molex 0015977102
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Overall Contact Length:
-
Insulation Height:
0.504" (12.80mm)
Voltage Rating:
-
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, Industrial, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyester
Package:
Bulk
Row Spacing - Mating:
0.217" (5.51mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
35.4µin (0.90µm)
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Mounting Flange
Mounting Type:
Through Hole
Series:
Mini-Fit TPA 30069
Contact Type:
Male Pin
Contact Material:
Brass Alloy
Base Product Number:
001597
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0015977102 on website for other similar products.
We accept all major payment methods for all products including ET18474210. Please check your shopping cart at the time of order.
You can order Molex brand products with 0015977102 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0015977102. You can also check on our website or by contacting our customer support team for further order details on Molex 0015977102.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18474210 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18474210.
Yes. We ship 0015977102 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0015977102. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 10. 0.504" (12.80mm) of insulation height. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, industrial, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyester insulation material. It is shipped in bulk package . It carries 0.217" (5.51mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 35.4µin (0.90µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in through hole configuration. The product mini-fit tpa 30069, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass alloy materials. Moreover, it corresponds to 001597, a base product number of the product. The product is designated with the ear99 code number.
