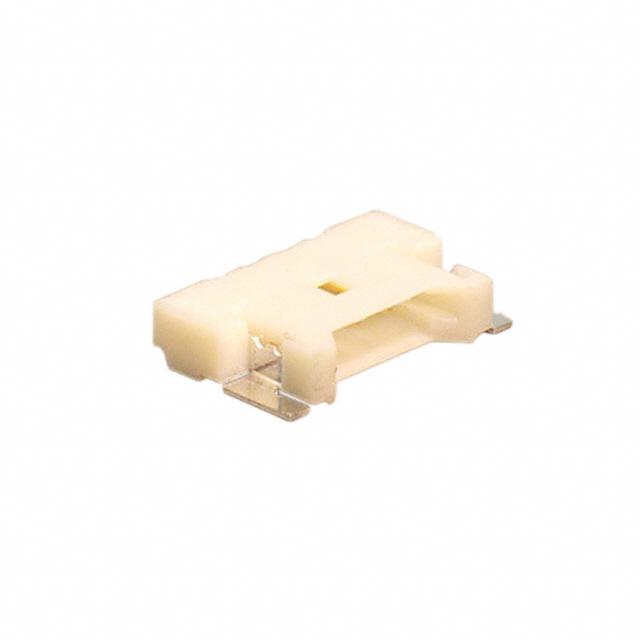

Molex 0537800390
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Detailed Description:
Connector Header Surface Mount, Right Angle 3 position 0.049" (1.25mm)
Contact Finish Thickness - Post:
118.1µin (3.00µm)
Number of Positions:
3
Base Part Number:
053780
Insulation Height:
0.073" (1.85mm)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Insulation Color:
Natural
Connector Type:
Header
Contact Length - Mating:
0.102" (2.60mm)
Number of Positions Loaded:
All
Fastening Type:
Detent Lock
Termination:
Solder
Pitch - Mating:
0.049" (1.25mm)
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
PanelMate 53780
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyphenylene Sulfide (PPS)
Contact Material:
Phosphor Bronze
Checking for live stock
FAQs
Yes. You can also search 0537800390 on website for other similar products.
We accept all major payment methods for all products including ET18421813. Please check your shopping cart at the time of order.
You can order Molex brand products with 0537800390 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0537800390. You can also check on our website or by contacting our customer support team for further order details on Molex 0537800390.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18421813 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18421813.
Yes. We ship 0537800390 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0537800390. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It features connector header surface mount, right angle 3 position 0.049" (1.25mm). Additionally, it features 118.1µin (3.00µm) of post thickness. The product carries possible position value of 3. Base Part Number: 053780. 0.073" (1.85mm) of insulation height. However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. In addition, natural is the insulation color of the product. header Connector type offer robust functionality. It is 0.102" (2.60mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product panelmate 53780, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polyphenylene sulfide (pps) insulation material. The product is made from sturdy phosphor bronze materials.
