Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
3
Contact Finish - Post:
Tin
edacadModel:
ATF13-3P-BM33J1939 Models
Overall Contact Length:
-
Insulation Height:
1.626" (41.30mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/10322715
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Voltage Rating:
250VDC
Row Spacing - Mating:
-
Connector Type:
Receptacle
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
13A
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.169" (4.30mm)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Lock, Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
BoardLock™ AT
Packaging:
Bulk
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
ATF13
ECCN:
EAR99

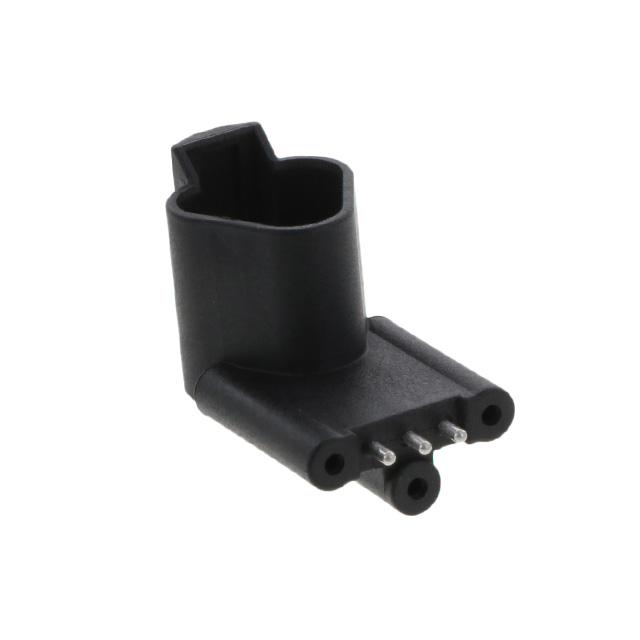

This is manufactured by Amphenol Sine Systems Corp. The manufacturer part number is ATF13-3P-BM33J1939. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 3. It has possible tin contact post finishing. 1.626" (41.30mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial. It comes in 2 of rows. It has a typical circular shape. It has a robust thermoplastic insulation material. Moreover, the product has a nominal 250vdc voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 13a. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.169" (4.30mm) of pitch-mating value. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include board lock, mounting flange. The product is available in through hole, right angle configuration. The product boardlock™ at, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to atf13, a base product number of the product. The product is designated with the ear99 code number.
