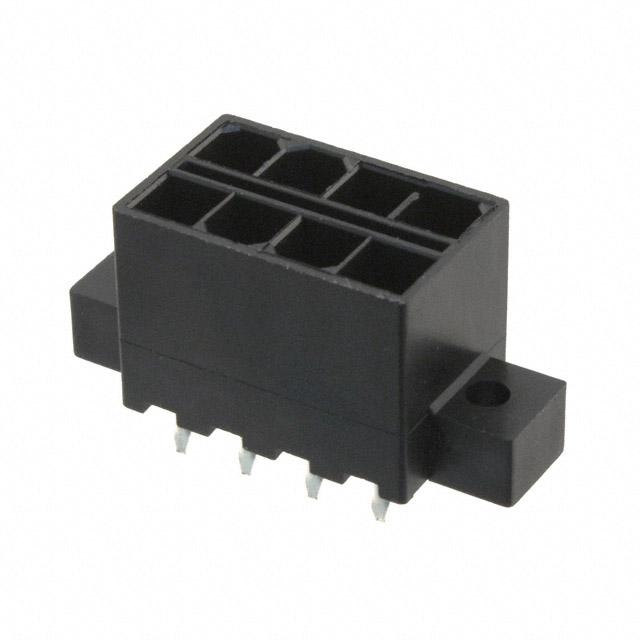

Molex 0015977084
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
8
Contact Finish - Post:
Tin
edacadModel:
0015977084 Models
Overall Contact Length:
-
Insulation Height:
0.504" (12.80mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1624646
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
-
Row Spacing - Mating:
0.217" (5.51mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Mounting Flange
Mounting Type:
Through Hole
Series:
Mini-Fit TPA 30069
Packaging:
Bulk
Insulation Material:
Polyester
Contact Material:
Brass Alloy
Base Product Number:
001597
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0015977084 on website for other similar products.
We accept all major payment methods for all products including ET18354448. Please check your shopping cart at the time of order.
You can order Molex brand products with 0015977084 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0015977084. You can also check on our website or by contacting our customer support team for further order details on Molex 0015977084.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18354448 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18354448.
Yes. We ship 0015977084 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0015977084. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 8. It has possible tin contact post finishing. 0.504" (12.80mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.217" (5.51mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in through hole configuration. The product mini-fit tpa 30069, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyester insulation material. The product is made from sturdy brass alloy materials. Moreover, it corresponds to 001597, a base product number of the product. The product is designated with the ear99 code number.
