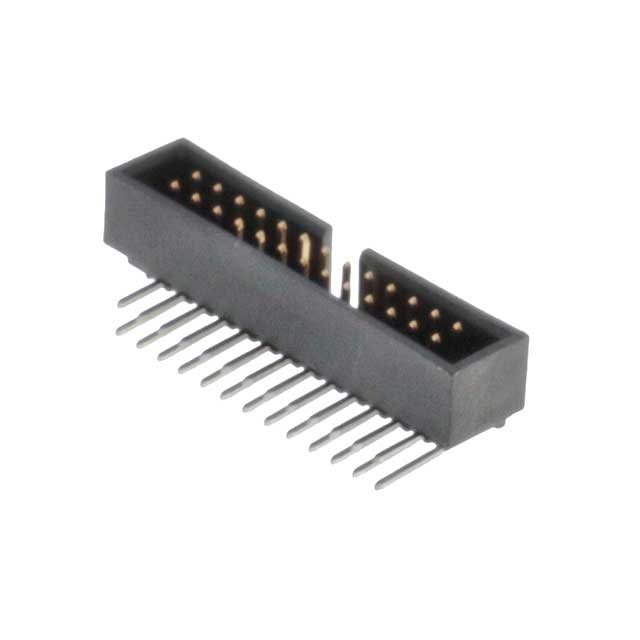

Molex 0702472652
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
74.8µin (1.90µm)
Number of Positions:
26
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.350" (8.89mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0702472652 Models
Applications:
Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/774635
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
24 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
C-Grid 70247
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
070247
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0702472652 on website for other similar products.
We accept all major payment methods for all products including ET18352166. Please check your shopping cart at the time of order.
You can order Molex brand products with 0702472652 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0702472652. You can also check on our website or by contacting our customer support team for further order details on Molex 0702472652.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18352166 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18352166.
Yes. We ship 0702472652 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0702472652. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 74.8µin (1.90µm) of post thickness. The product carries possible position value of 26. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.350" (8.89mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, lighting, medical, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 24 weeks standard lead time. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product c-grid 70247, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 070247, a base product number of the product. The product is designated with the ear99 code number.
