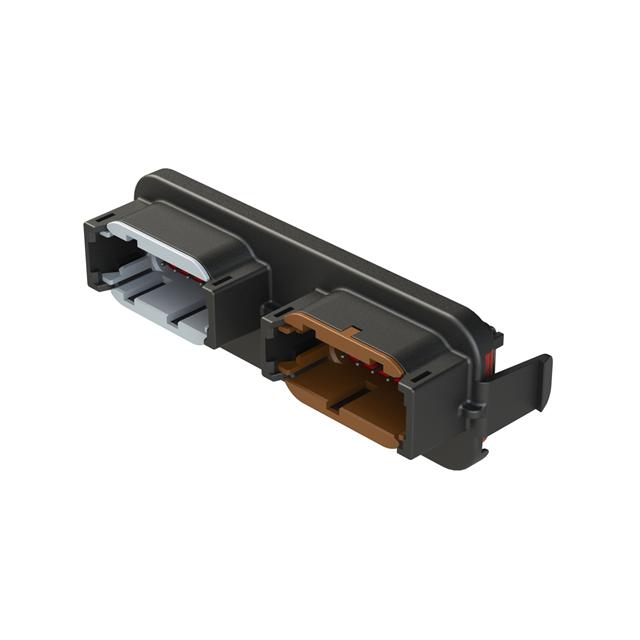

Amphenol Sine Systems Corp ATM13-12PA-12PD-BM03

ATM13-12PA-12PD-BM03 Amphenol Sine Systems Corp
Amphenol Sine Systems Corp

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
12, 12
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
1.378" (35.00mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
ATM13-12PA-12PD-BM03 Models
Applications:
Automotive, Industrial
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/9953957
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Receptacle
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
22 Weeks
Current Rating (Amps):
7.5A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
-
Ingress Protection:
IP67
Features:
Mounting Flange, Sealed
Mounting Type:
Panel Mount, Snap-In; Through Hole, Right Angle
Series:
Armor IPX™ ATM
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
ATM13
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Sine Systems Corp. The manufacturer part number is ATM13-12PA-12PD-BM03. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 12, 12. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 1.378" (35.00mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, industrial. It comes in 2 of rows. In addition, black is the insulation color of the product. It has a typical circular shape. It has a robust thermoplastic insulation material. It is shipped in bulk package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 22 weeks standard lead time. Additionally, the product's output is 7.5a. 0.112" (2.84mm) is the given possible contact length (post) values. It is IP rated with ip67. The splendid features of the product include mounting flange, sealed. The product is available in panel mount, snap-in; through hole, right angle configuration. The product armor ipx™ atm, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to atm13, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ARMORIPX Family(Datasheets)
pdf icon
A Series Family(Datasheets)
pdf icon
ATM13-12PX-12PX-BMXX(Datasheets)
