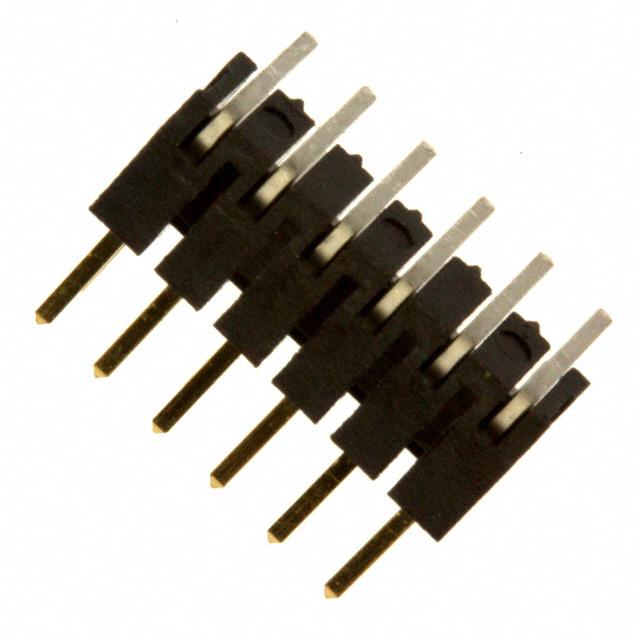

Amphenol ICC (FCI) 58102-G61-06LF

58102-G61-06LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Gold, GXT™
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
-
edacadModel:
58102-G61-06LF Models
Overall Contact Length:
-
Insulation Height:
0.165" (4.20mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1090034
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
200V (AC/DC)
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
2A (AC/DC)
Contact Length - Post:
0.098" (2.50mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
Minitek®
Packaging:
Bulk
Insulation Material:
Thermoplastic
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
58102
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 58102-G61-06LF. It has nice contact finishing of gold, gxt™. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product carries possible position value of 12. 0.165" (4.20mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 200v (ac/dc) voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 9 weeks standard lead time. Additionally, the product's output is 2a (ac/dc). 0.098" (2.50mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product minitek®, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust thermoplastic insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 58102, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Minitek 2.00mm 29/Oct/2011(PCN Assembly/Origin)
pdf icon
Raw Plastic PCT to PA4T 10/May/2013(PCN Design/Specification)
pdf icon
Mult Devs Materials Change 14/JAN/2020(PCN Design/Specification)
pdf icon
bwb_minitek_unshrouded_vh Datasheet(Datasheets)
pdf icon
10161239-101(Other Related Documents)
pdf icon
minitek productpresentation Other Related Document(Other Related Documents)
