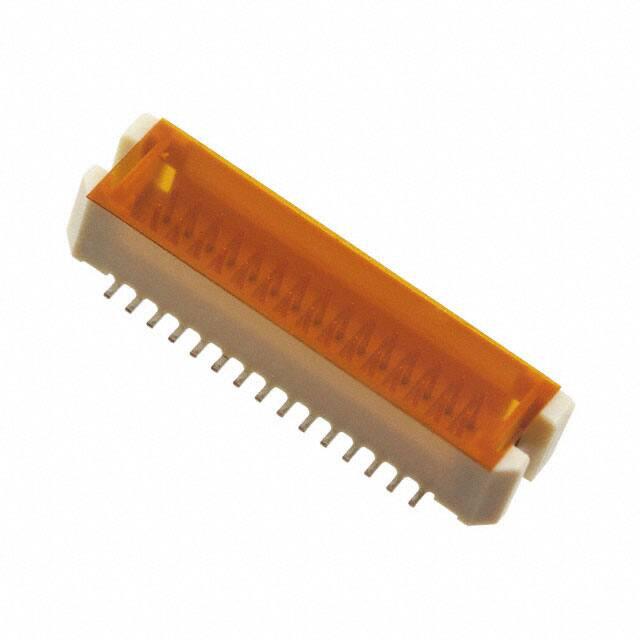

Molex 0535053071

0535053071 Molex
Molex

Product Information

Style:
Board to Cable/Wire
Detailed Description:
Connector Header Surface Mount 30 position 0.049" (1.25mm)
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
30
Base Part Number:
053505
Insulation Height:
0.191" (4.85mm)
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Contact Finish - Mating:
Gold
Row Spacing - Mating:
0.055" (1.40mm)
Connector Type:
Header
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.049" (1.25mm)
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
Pico-Gold 53505
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0535053071. Additionally, the product is designed with board to cable/wire Style. It features connector header surface mount 30 position 0.049" (1.25mm). Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 30. Base Part Number: 053505. 0.191" (4.85mm) of insulation height. However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. It has nice contact finishing of gold. It carries 0.055" (1.40mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product is available in surface mount configuration. The product pico-gold 53505, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polyamide (pa), nylon, glass filled insulation material. The product is made from sturdy phosphor bronze materials.

pdf icon
0535053071(Datasheets)
pdf icon
53505 Series 24/May/2011(PCN Obsolescence/ EOL)
pdf icon
0535053071 RoHS Cert of Compliance(Environmental Information)
