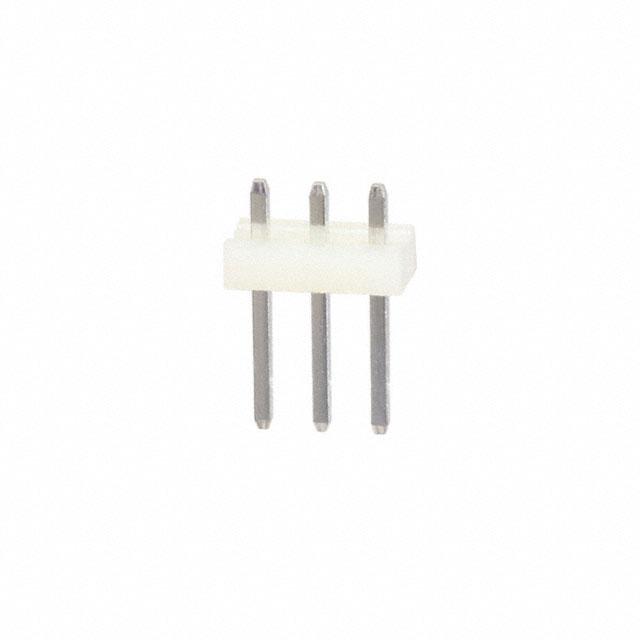

Adam Tech LHB-03-SA2

LHB-03-SA2 Adam Tech
Adam Tech

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
3
Overall Contact Length:
0.689" (17.50mm)
Insulation Height:
0.126" (3.20mm)
Voltage Rating:
250VAC
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-2
Insulation Color:
White
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bag
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.413" (10.50mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
7A
Contact Length - Post:
0.150" (3.81mm)
Pitch - Mating:
0.156" (3.96mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
LHB
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
LHB-03
ECCN:
EAR99
Checking for live stock

This is manufactured by Adam Tech. The manufacturer part number is LHB-03-SA2. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 105°c operating temperature range. The product carries possible position value of 3. The product has a 0.689" (17.50mm) of overall contact lentgh. 0.126" (3.20mm) of insulation height. Moreover, the product has a nominal 250vac voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-2 of material flammability rating. In addition, white is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bag package . header Connector type offer robust functionality. It is 0.413" (10.50mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 7a. 0.150" (3.81mm) is the given possible contact length (post) values. It has 0.156" (3.96mm) of pitch-mating value. The product is available in through hole configuration. The product lhb, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to lhb-03, a base product number of the product. The product is designated with the ear99 code number.
