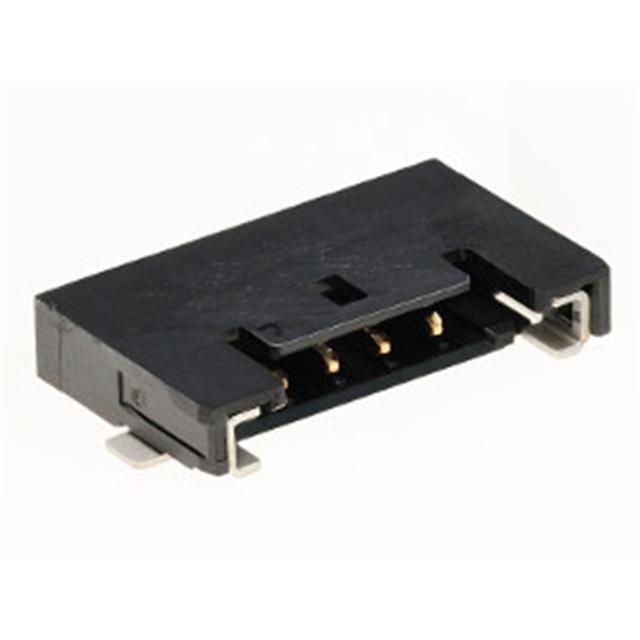

Molex 5037630591

5037630591 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
5
Contact Finish - Post:
Gold
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.059" (1.50mm)
Voltage Rating:
150V
REACH Status:
REACH Unaffected
edacadModel:
5037630591 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9954103
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.94µin (0.100µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
19 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Pico-Lock 503763
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
503763
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5037630591. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 5. It has possible gold contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.059" (1.50mm) of insulation height. Moreover, the product has a nominal 150v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.94µin (0.100µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 19 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product pico-lock 503763, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 503763, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
503764-001 Prod Spec(Datasheets)
pdf icon
503763-001 Pkg Spec(Datasheets)
pdf icon
5037630591 Drawing(Product Drawings)
