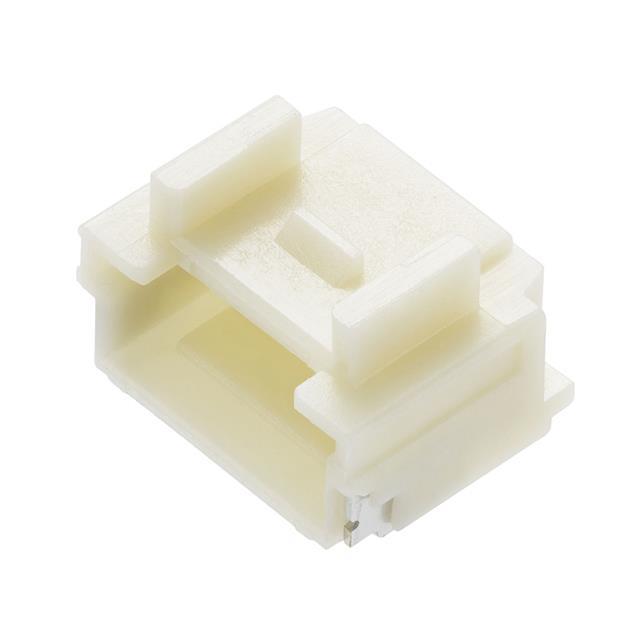

Molex 5019530505
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
1.97µin (0.050µm)
Number of Positions:
5
Overall Contact Length:
-
Insulation Height:
0.130" (3.30mm)
Voltage Rating:
50V
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.90µin (0.099µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Pico-Clasp 501953
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
501953
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5019530505 on website for other similar products.
We accept all major payment methods for all products including ET17827803. Please check your shopping cart at the time of order.
You can order Molex brand products with 5019530505 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 5019530505. You can also check on our website or by contacting our customer support team for further order details on Molex 5019530505.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17827803 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17827803.
Yes. We ship 5019530505 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 5019530505. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 1.97µin (0.050µm) of post thickness. The product carries possible position value of 5. 0.130" (3.30mm) of insulation height. Moreover, the product has a nominal 50v voltage rating. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial, medical. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.90µin (0.099µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product pico-clasp 501953, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 501953, a base product number of the product. The product is designated with the ear99 code number.
