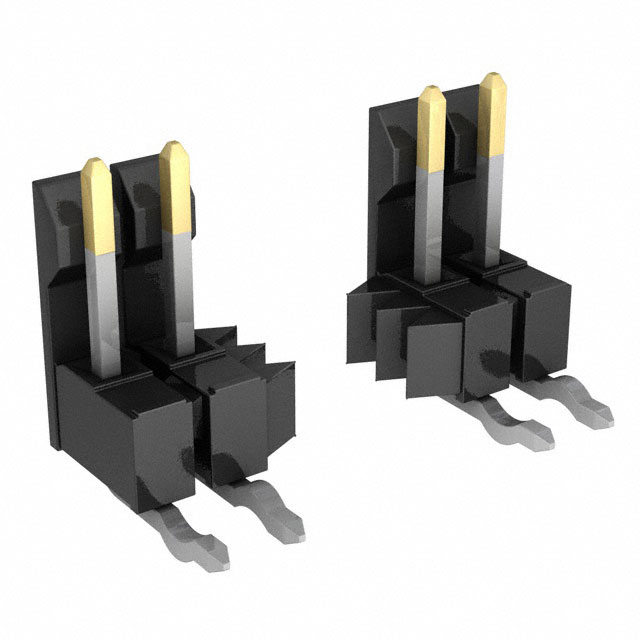

Molex 0022281054
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
5
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 1 Wall
Overall Contact Length:
-
Insulation Height:
0.284" (7.21mm)
Voltage Rating:
-
edacadModel:
0022281054 Models
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3157912
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.295" (7.49mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Friction Lock
Termination:
Kinked Pin, Solder
standardLeadTime:
75 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.135" (3.43mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
KK254, 42228
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
002228
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0022281054 on website for other similar products.
We accept all major payment methods for all products including ET17825318. Please check your shopping cart at the time of order.
You can order Molex brand products with 0022281054 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0022281054. You can also check on our website or by contacting our customer support team for further order details on Molex 0022281054.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17825318 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17825318.
Yes. We ship 0022281054 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0022281054. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 5. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 1 wall. 0.284" (7.21mm) of insulation height. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon, glass filled insulation material. It is shipped in bulk package . header, breakaway Connector type offer robust functionality. It is 0.295" (7.49mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, friction lock is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 75 weeks standard lead time. 0.135" (3.43mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product kk254, 42228, is a highly preferred choice for users. It has typical contact type of male pin. Moreover, it corresponds to 002228, a base product number of the product. The product is designated with the ear99 code number.
