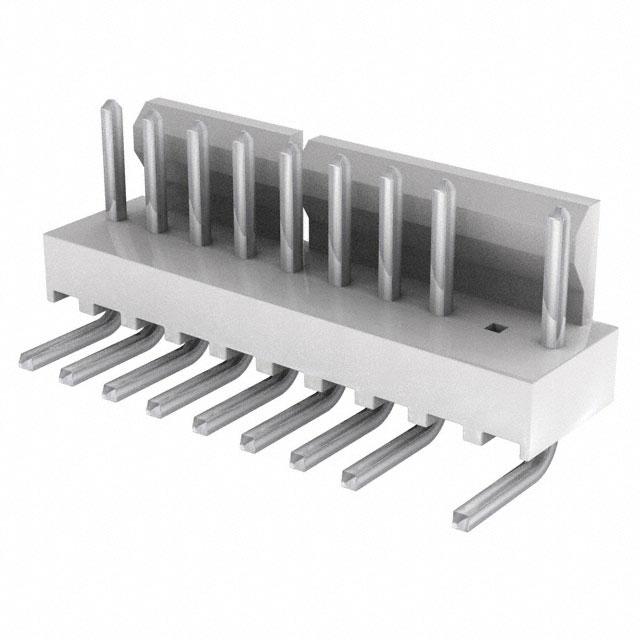

Molex 0022058105

0022058105 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
10
Overall Contact Length:
-
Insulation Height:
0.250" (6.35mm)
Insulation Color:
White
Shrouding:
Shrouded - 1 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.264" (6.70mm)
Number of Positions Loaded:
9
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Friction Lock
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.141" (3.58mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
KK254, 7832
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
ECCN:
EAR99
Base Product Number:
002205
Contact Material:
Brass
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0022058105. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 10. 0.250" (6.35mm) of insulation height. In addition, white is the insulation color of the product. Furthermore, a bespoke product features shrouded - 1 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 60.0µin (1.52µm) is the "Contact Finish Thickness - Mating" of the product. header Connector type offer robust functionality. It is 0.264" (6.70mm) contact mated. However, 9 is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. 0.141" (3.58mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product kk254, 7832, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. The product is designated with the ear99 code number. Moreover, it corresponds to 002205, a base product number of the product. The product is made from sturdy brass materials.

pdf icon
0022058105(Datasheets)
