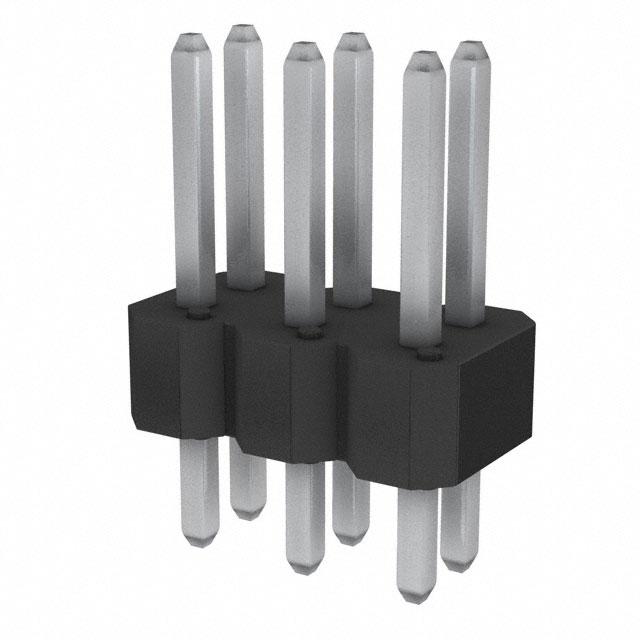

Amphenol ICC (FCI) 77313-418-06LF

77313-418-06LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-65°C ~ 130°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
6
Contact Finish - Post:
Tin
Shrouding:
Unshrouded
Overall Contact Length:
0.450" (11.43mm)
Insulation Height:
0.100" (2.54mm)
Voltage Rating:
-
REACH Status:
REACH Affected
edacadModel:
77313-418-06LF Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1523824
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
3A per Contact
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
BERGSTIK®
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
77313
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 77313-418-06LF. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -65°c ~ 130°c operating temperature range. Additionally, it features 78.7µin (2.00µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. Furthermore, a bespoke product features unshrouded. The product has a 0.450" (11.43mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. In addition, it is reach affected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 3a per contact. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product bergstik®, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 77313, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Bergstik Design 03/Mar/2014(PCN Design/Specification)
pdf icon
77313 Series Drawing(Product Drawings)
