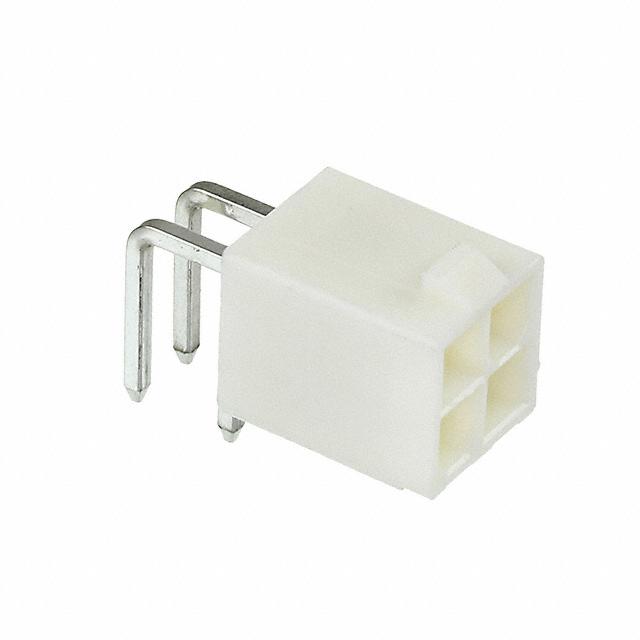

Amphenol ICC (FCI) 10127819-04211LF
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
4
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.386" (9.80mm)
Voltage Rating:
600V
REACH Status:
REACH Affected
edacadModel:
10127819-04211LF Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4996299
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Tray
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
Minitek® Pwr 4.2
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
10127819
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 10127819-04211LF on website for other similar products.
We accept all major payment methods for all products including ET17820126. Please check your shopping cart at the time of order.
You can order Amphenol ICC (FCI) brand products with 10127819-04211LF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol ICC (FCI) 10127819-04211LF. You can also check on our website or by contacting our customer support team for further order details on Amphenol ICC (FCI) 10127819-04211LF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17820126 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol ICC (FCI)" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17820126.
Yes. We ship 10127819-04211LF Internationally to many countries around the world.
This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 10127819-04211LF. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 4. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.386" (9.80mm) of insulation height. Moreover, the product has a nominal 600v voltage rating. In addition, it is reach affected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in tray package . It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product minitek® pwr 4.2, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 10127819, a base product number of the product. The product is designated with the ear99 code number.
