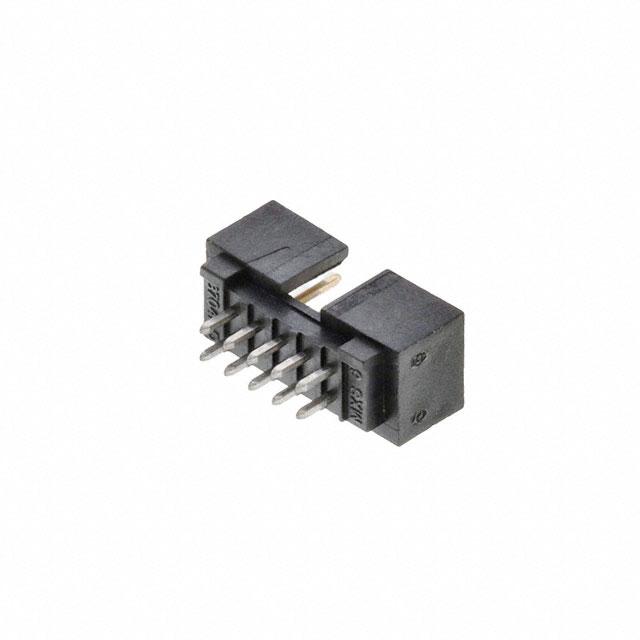

Molex 0918160010
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
74.8µin (1.90µm)
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.494" (12.54mm)
Insulation Height:
0.365" (9.27mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0918160010 Models
Applications:
Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3304107
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.129" (3.28mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
C-Grid 91816
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
091816
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0918160010 on website for other similar products.
We accept all major payment methods for all products including ET17731397. Please check your shopping cart at the time of order.
You can order Molex brand products with 0918160010 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0918160010. You can also check on our website or by contacting our customer support team for further order details on Molex 0918160010.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17731397 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17731397.
Yes. We ship 0918160010 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0918160010. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 74.8µin (1.90µm) of post thickness. The product carries possible position value of 10. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.494" (12.54mm) of overall contact lentgh. 0.365" (9.27mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, lighting, medical, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polycyclohexylenedimethylene terephthalate (pct), glass filled insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. 0.129" (3.28mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product c-grid 91816, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 091816, a base product number of the product. The product is designated with the ear99 code number.
