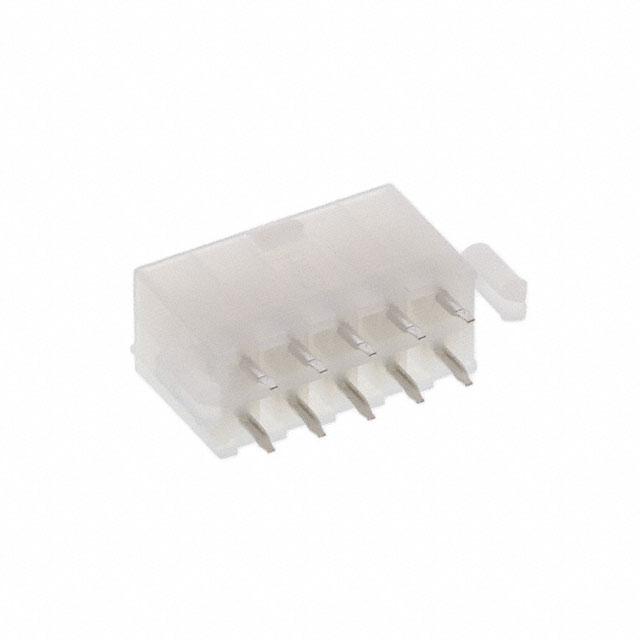

Molex 0460151007

0460151007 Molex
0460151007
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.504" (12.80mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0460151007 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3311422
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Tray
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
Mini-Fit Plus HCS 46015
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
046015
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0460151007. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 10. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.504" (12.80mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, medical, telecommunications. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in tray package . It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product mini-fit plus hcs 46015, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 046015, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
460151007 RoHS Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices Material Supplier 28/Oct/2020(PCN Assembly/Origin)
pdf icon
0460151007.pdf(3D Drawings)
pdf icon
0460151007 Drawing(Product Drawings)
