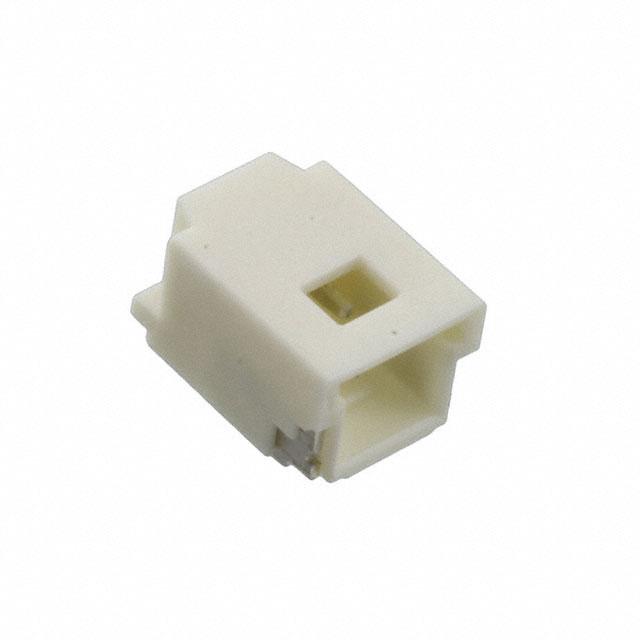

Molex 5015680207
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
2
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.126" (3.20mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
5015680207 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1531485
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
40.0µin (1.02µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Pico-Clasp 501568
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
501568
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5015680207 on website for other similar products.
We accept all major payment methods for all products including ET17720641. Please check your shopping cart at the time of order.
You can order Molex brand products with 5015680207 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 5015680207. You can also check on our website or by contacting our customer support team for further order details on Molex 5015680207.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17720641 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17720641.
Yes. We ship 5015680207 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 5015680207. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 2. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.126" (3.20mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 40.0µin (1.02µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product pico-clasp 501568, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 501568, a base product number of the product. The product is designated with the ear99 code number.
