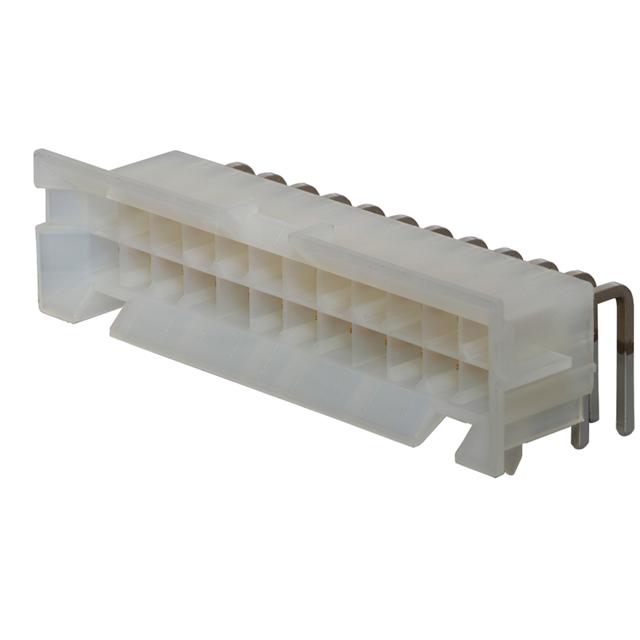

Molex 0015249247
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
24
Contact Finish - Post:
Tin
edacadModel:
0015249247 Models
Overall Contact Length:
-
Insulation Height:
0.591" (15.00mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3122273
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
-
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Blind Mating, Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit BMI 42404
Packaging:
Tray
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
Brass
Base Product Number:
001524
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0015249247 on website for other similar products.
We accept all major payment methods for all products including ET17668725. Please check your shopping cart at the time of order.
You can order Molex brand products with 0015249247 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0015249247. You can also check on our website or by contacting our customer support team for further order details on Molex 0015249247.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17668725 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17668725.
Yes. We ship 0015249247 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0015249247. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 24. It has possible tin contact post finishing. 0.591" (15.00mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. It has a typical square shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include blind mating, board lock. The product is available in through hole, right angle configuration. The product mini-fit bmi 42404, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 001524, a base product number of the product. The product is designated with the ear99 code number.
