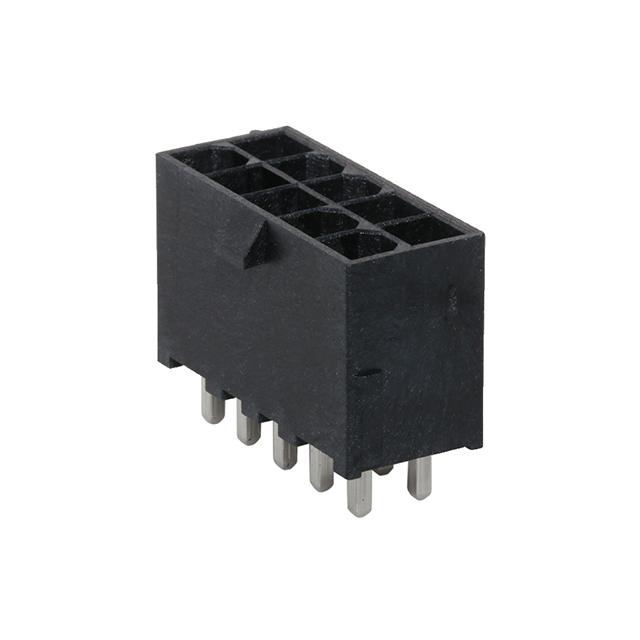

Molex 0462076010

0462076010 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
10
Contact Finish - Post:
Tin
edacadModel:
0462076010 Models
Overall Contact Length:
-
Insulation Height:
0.535" (13.60mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4693243
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
600V
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.144" (3.66mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Mini-Fit Jr 46207
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Material:
Brass Alloy
Base Product Number:
046207
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0462076010. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 10. It has possible tin contact post finishing. 0.535" (13.60mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 600v voltage rating. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.144" (3.66mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product mini-fit jr 46207, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. The product is made from sturdy brass alloy materials. Moreover, it corresponds to 046207, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Supplier 09/Dec/2022(PCN Assembly/Origin)
pdf icon
Mini-Fit Overmolded Cable Assemblies(Datasheets)
pdf icon
46207-6010.pdf(3D Drawings)
pdf icon
46207 Drawing(Product Drawings)
