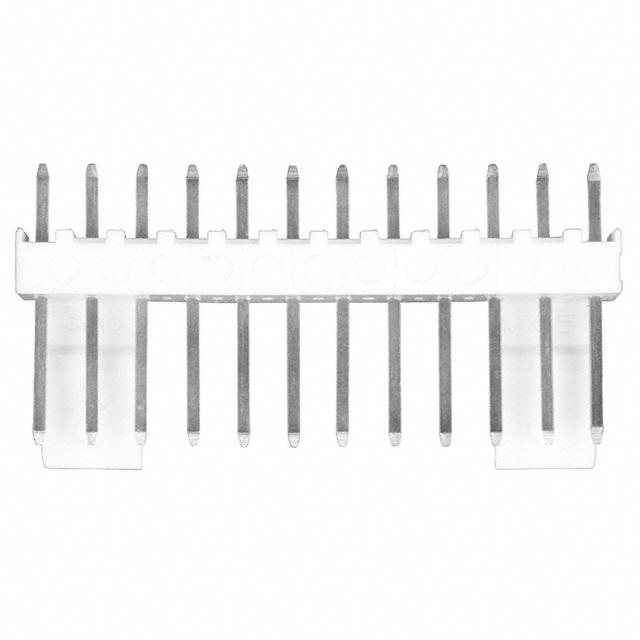

Molex 0022292121
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
12
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 1 Wall
Overall Contact Length:
0.560" (14.22mm)
Insulation Height:
0.461" (11.70mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0022292121 Models
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1130598
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.295" (7.49mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
20.0µin (0.51µm)
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
40 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.140" (3.56mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
KK254, 6410
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
002229
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0022292121 on website for other similar products.
We accept all major payment methods for all products including ET17536956. Please check your shopping cart at the time of order.
You can order Molex brand products with 0022292121 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0022292121. You can also check on our website or by contacting our customer support team for further order details on Molex 0022292121.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17536956 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17536956.
Yes. We ship 0022292121 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0022292121. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 12. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 1 wall. The product has a 0.560" (14.22mm) of overall contact lentgh. 0.461" (11.70mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.295" (7.49mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 20.0µin (0.51µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 40 weeks standard lead time. 0.140" (3.56mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product kk254, 6410, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 002229, a base product number of the product. The product is designated with the ear99 code number.
