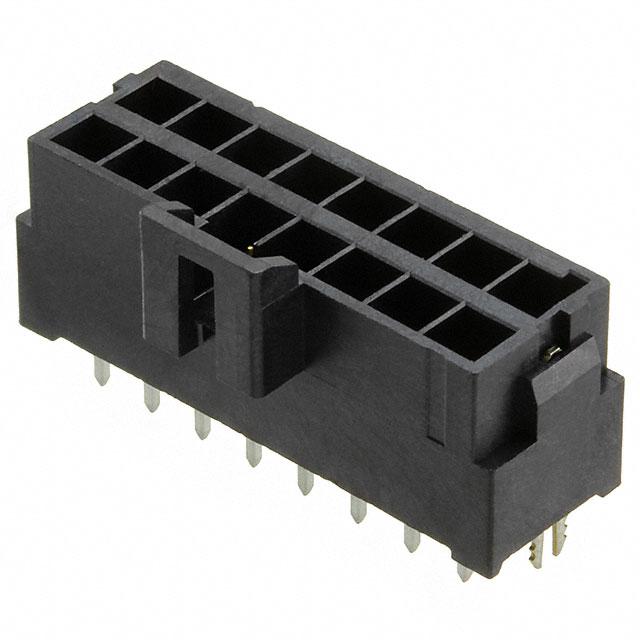

Molex 1722991316
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 120°C
Contact Finish Thickness - Post:
60.0µin (1.52µm)
Number of Positions:
16
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.465" (11.80mm)
Voltage Rating:
400V
REACH Status:
REACH Unaffected
edacadModel:
1722991316 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5360262
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
26.99mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Bulk
Row Spacing - Mating:
0.181" (4.60mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.138" (3.50mm)
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Through Hole
Series:
Ultra-Fit 172299
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
172299
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1722991316 on website for other similar products.
We accept all major payment methods for all products including ET17534799. Please check your shopping cart at the time of order.
You can order Molex brand products with 1722991316 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 1722991316. You can also check on our website or by contacting our customer support team for further order details on Molex 1722991316.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17534799 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17534799.
Yes. We ship 1722991316 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 1722991316. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 120°c operating temperature range. Additionally, it features 60.0µin (1.52µm) of post thickness. The product carries possible position value of 16. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.465" (11.80mm) of insulation height. Moreover, the product has a nominal 400v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical, military, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 26.99mm. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in bulk package . It carries 0.181" (4.60mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.138" (3.50mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in through hole configuration. The product ultra-fit 172299, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 172299, a base product number of the product. The product is designated with the ear99 code number.
