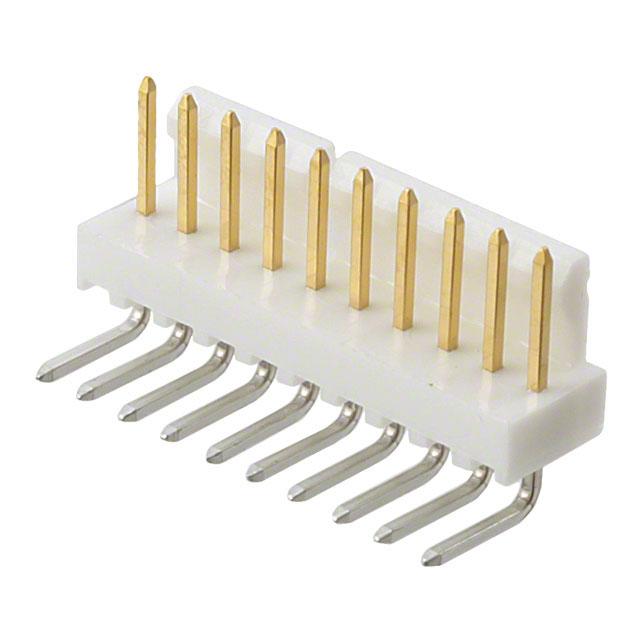

Molex 0022122104

0022122104 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Contact Finish - Post:
Tin
edacadModel:
0022122104 Models
Overall Contact Length:
-
title:
0022122104
Insulation Height:
0.250" (6.35mm)
Insulation Color:
White
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 1 Wall
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/172043
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.264" (6.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
20.0µin (0.51µm)
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.141" (3.58mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
KK254, 7478
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
002212
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0022122104. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 10. It has possible tin contact post finishing. 0.250" (6.35mm) of insulation height. In addition, white is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 1 wall. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. header Connector type offer robust functionality. It is 0.264" (6.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 20.0µin (0.51µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. 0.141" (3.58mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product kk254, 7478, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 002212, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
22-12-2104 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Supplier 09/Dec/2022(PCN Assembly/Origin)
pdf icon
10-07 Prod Spec(Datasheets)
pdf icon
22-12-2104(Datasheets)
pdf icon
0022122104.pdf(3D Drawings)
