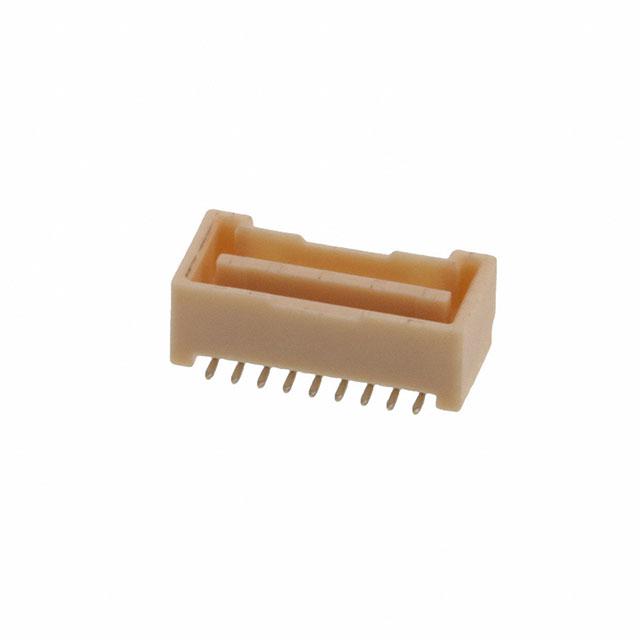

Molex 5041871870

5041871870 Molex
5041871870
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
18
Contact Finish - Post:
Tin
edacadModel:
5041871870 Models
Overall Contact Length:
-
Insulation Height:
0.189" (4.80mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5116968
Contact Shape:
Square
Mated Stacking Heights:
7.95mm
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Lock
Termination:
Solder
standardLeadTime:
33 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
Micro-Lock 504187
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
504187
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5041871870. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 18. It has possible tin contact post finishing. 0.189" (4.80mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 7.95mm. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock is the Fastening Type of the product. The product features solder termination style. It has a long 33 weeks standard lead time. It has 0.049" (1.25mm) of pitch-mating value. The product is available in surface mount configuration. The product micro-lock 504187, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa), nylon, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 504187, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
5041871870(Datasheets)
pdf icon
504187-1870.pdf(3D Drawings)
pdf icon
504187x Drawing(Product Drawings)
