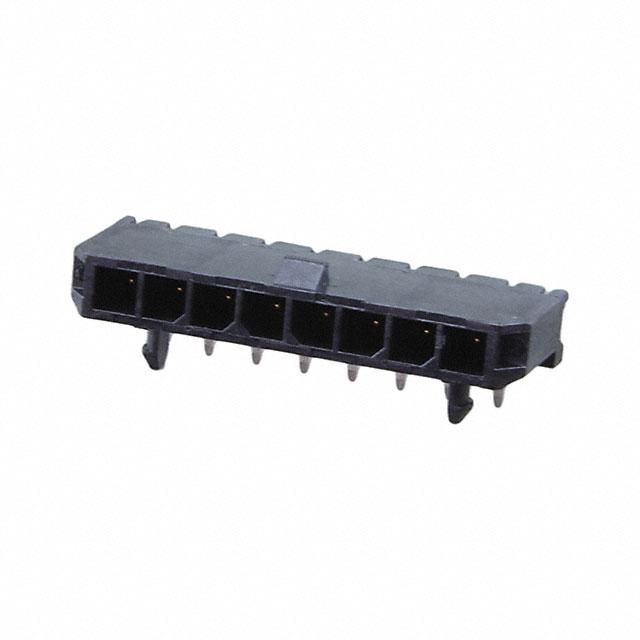

Molex 0436500802

0436500802 Molex
0436500802
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
8
Contact Finish - Post:
Tin
edacadModel:
0436500802 Models
Overall Contact Length:
-
title:
0436500802
Insulation Height:
0.172" (4.37mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Medical, Military, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3310609
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Micro-Fit 3.0 43650
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
043650
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0436500802. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 8. It has possible tin contact post finishing. 0.172" (4.37mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, medical, military, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 9 weeks standard lead time. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product micro-fit 3.0 43650, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 043650, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Micro-Fit 3.0 Overview(Product Brief)
pdf icon
436500802 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Location 10/Apr/2024(PCN Assembly/Origin)
pdf icon
43650 Prod Spec(Datasheets)
pdf icon
Glow Wire Compliance Statement(Other Related Documents)
pdf icon
0436500802.pdf(3D Drawings)
pdf icon
0436500802 Drawing(Product Drawings)
pdf icon
43650, 43655 Series Pkg Drawing(Product Drawings)
