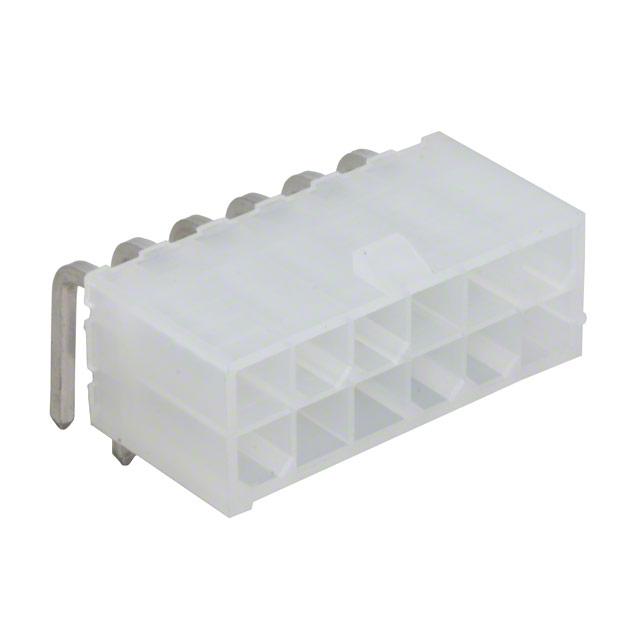

Molex 0353181220

0353181220 Molex
0353181220
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.378" (9.60mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0353181220 Models
Applications:
General Purpose, Industrial, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3185067
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bulk
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
0.208" (5.30mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.173" (4.40mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit Jr 35318
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
035318
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0353181220. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 12. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.378" (9.60mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose, industrial, telecommunications. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bulk package . It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. It is 0.208" (5.30mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. 0.173" (4.40mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product mini-fit jr 35318, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 035318, a base product number of the product. The product is designated with the ear99 code number.
