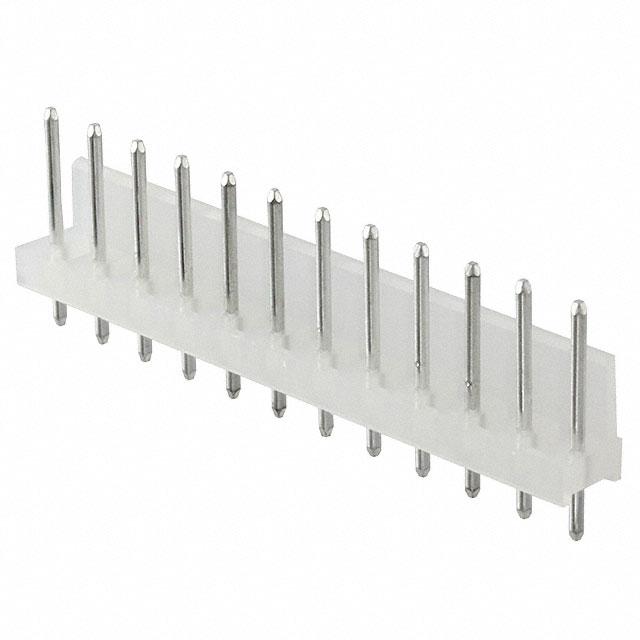

Molex 0010085121

0010085121 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 1 Wall
Overall Contact Length:
0.750" (19.05mm)
Insulation Height:
0.375" (9.53mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0010085121 Models
Applications:
General Purpose, Industrial, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3072146
Insulation Color:
Natural
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.450" (11.43mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
19 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.175" (4.45mm)
Pitch - Mating:
0.200" (5.08mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
KK508, 2599
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
001008
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0010085121. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 12. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 1 wall. The product has a 0.750" (19.05mm) of overall contact lentgh. 0.375" (9.53mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose, industrial, telecommunications. It comes in 1 of rows. It carries ul94 v-2 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.450" (11.43mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 19 weeks standard lead time. 0.175" (4.45mm) is the given possible contact length (post) values. It has 0.200" (5.08mm) of pitch-mating value. The product is available in through hole configuration. The product kk508, 2599, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 001008, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
0010085121 RoHS Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices Production Location 20/Mar/2017(PCN Assembly/Origin)
pdf icon
0010085121(Datasheets)
pdf icon
10-08-5121.pdf(3D Drawings)
