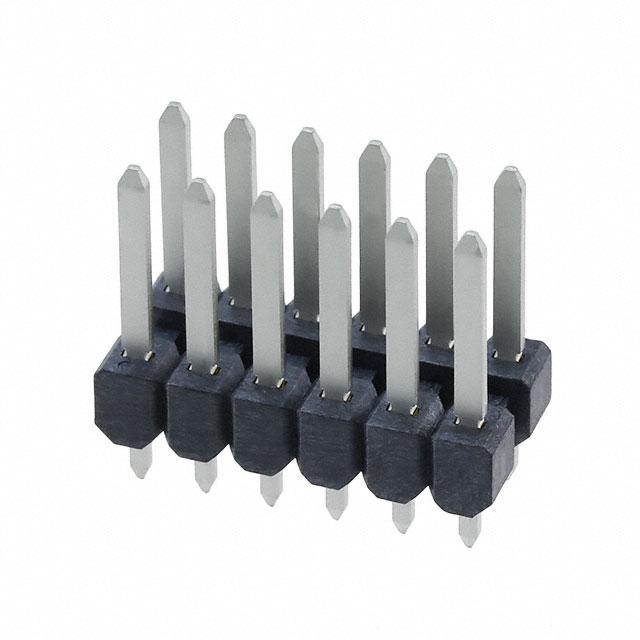

Molex 0757571161
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
12
Contact Finish - Post:
Tin
Shrouding:
Unshrouded
Overall Contact Length:
0.738" (18.75mm)
Insulation Height:
0.177" (4.50mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0757571161 Models
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2787991
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tube
Row Spacing - Mating:
0.236" (6.00mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.441" (11.20mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.138" (3.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
MX150 75757
Contact Type:
Male Blade
Contact Material:
Cartridge Brass
Base Product Number:
075757
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0757571161 on website for other similar products.
We accept all major payment methods for all products including ET17519471. Please check your shopping cart at the time of order.
You can order Molex brand products with 0757571161 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0757571161. You can also check on our website or by contacting our customer support team for further order details on Molex 0757571161.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17519471 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17519471.
Yes. We ship 0757571161 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0757571161. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 12. It has possible tin contact post finishing. Furthermore, a bespoke product features unshrouded. The product has a 0.738" (18.75mm) of overall contact lentgh. 0.177" (4.50mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It is shipped in tube package . It carries 0.236" (6.00mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.441" (11.20mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.138" (3.50mm) of pitch-mating value. The product is available in through hole configuration. The product mx150 75757, is a highly preferred choice for users. It has typical contact type of male blade. The product is made from sturdy cartridge brass materials. Moreover, it corresponds to 075757, a base product number of the product. The product is designated with the ear99 code number.
