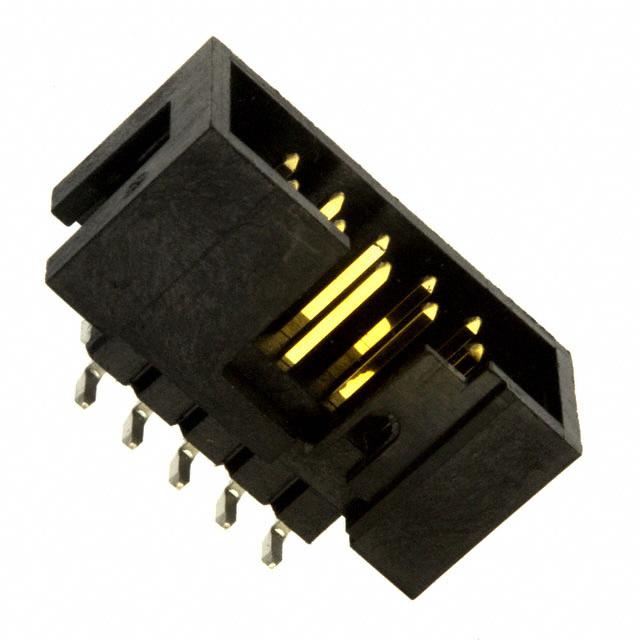

Amphenol ICC (FCI) 52601-S10-8LF

52601-S10-8LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Gold or Gold, GXT™
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-65°C ~ 105°C
Number of Positions:
10
Contact Finish - Post:
Tin
edacadModel:
52601-S10-8LF Models
Overall Contact Length:
-
Insulation Height:
0.365" (9.27mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1486689
Contact Shape:
Square
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
Quickie™
Packaging:
Tray
Insulation Material:
-
Contact Material:
Phosphor Bronze
Base Product Number:
52601
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 52601-S10-8LF. It has nice contact finishing of gold or gold, gxt™. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -65°c ~ 105°c operating temperature range. The product carries possible position value of 10. It has possible tin contact post finishing. 0.365" (9.27mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. It has 0.100" (2.54mm) of pitch-mating value. The product is available in surface mount configuration. The product quickie™, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 52601, a base product number of the product. The product is designated with the ear99 code number.
