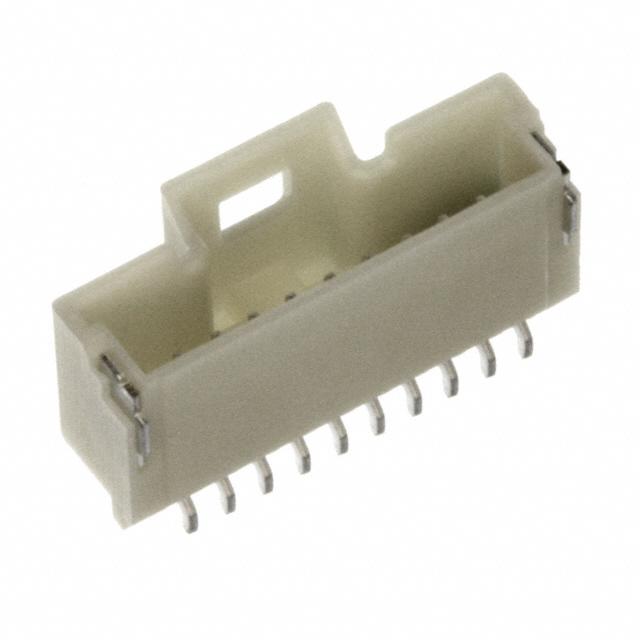

Molex 5015681007

5015681007 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.185" (4.70mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
5015681007 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1531493
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
40.0µin (1.02µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Pico-Clasp 501568
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
501568
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5015681007. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 10. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.185" (4.70mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 40.0µin (1.02µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product pico-clasp 501568, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 501568, a base product number of the product. The product is designated with the ear99 code number.
