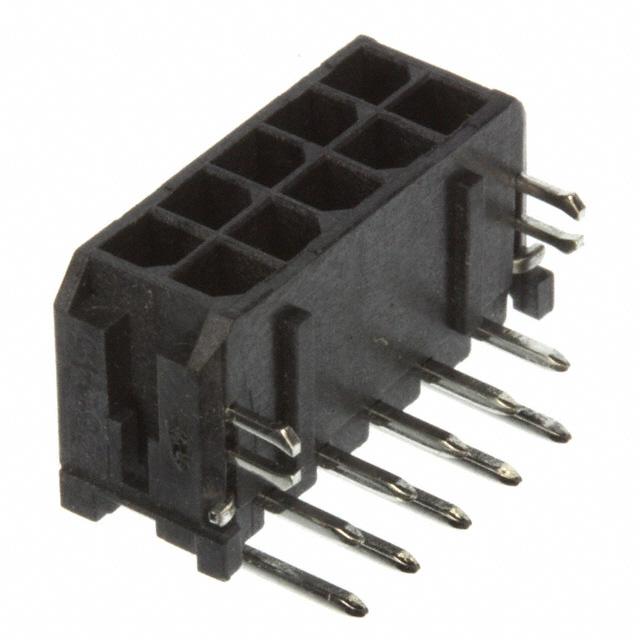

Molex 0430451021

0430451021 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
10
Contact Finish - Post:
Tin
edacadModel:
0430451021 Models
Overall Contact Length:
-
Insulation Height:
0.290" (7.37mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1635027
Contact Shape:
Square
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
Voltage Rating:
600V
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
7 Weeks
Current Rating (Amps):
8A
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Micro-Fit 3.0 43045
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Material:
Brass
Base Product Number:
043045
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0430451021. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 10. It has possible tin contact post finishing. 0.290" (7.37mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 60.0µin (1.52µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 600v voltage rating. It carries 0.118" (3.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 7 weeks standard lead time. Additionally, the product's output is 8a. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product micro-fit 3.0 43045, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 043045, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Micro-Fit 3.0 Overview(Product Brief)
pdf icon
430451021 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Production Transfer 12/Jul/2023(PCN Assembly/Origin)
pdf icon
Multiple Devices 13/Apr/2015(PCN Design/Specification)
pdf icon
43045 Prod Spec(Datasheets)
pdf icon
43045-xx21-23(Datasheets)
pdf icon
Packaging Improvement 06/Sep/2018(PCN Packaging)
pdf icon
Micro-Fit 3.0 Test Summary(Other Related Documents)
pdf icon
0430451021.pdf(3D Drawings)
pdf icon
0430451021 Drawing(Product Drawings)
