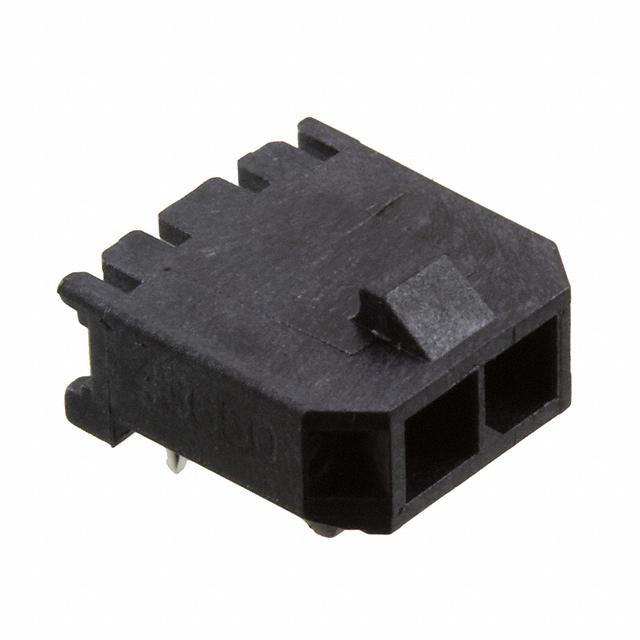

Molex 0436500200
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
2
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.172" (4.37mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0436500200 Models
Applications:
General Purpose, Medical, Military, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/268989
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
7 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Micro-Fit 3.0 43650
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
043650
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0436500200 on website for other similar products.
We accept all major payment methods for all products including ET17502880. Please check your shopping cart at the time of order.
You can order Molex brand products with 0436500200 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0436500200. You can also check on our website or by contacting our customer support team for further order details on Molex 0436500200.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17502880 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17502880.
Yes. We ship 0436500200 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0436500200. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 2. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.172" (4.37mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose, medical, military, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It is shipped in tray package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 60.0µin (1.52µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 7 weeks standard lead time. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product micro-fit 3.0 43650, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 043650, a base product number of the product. The product is designated with the ear99 code number.
