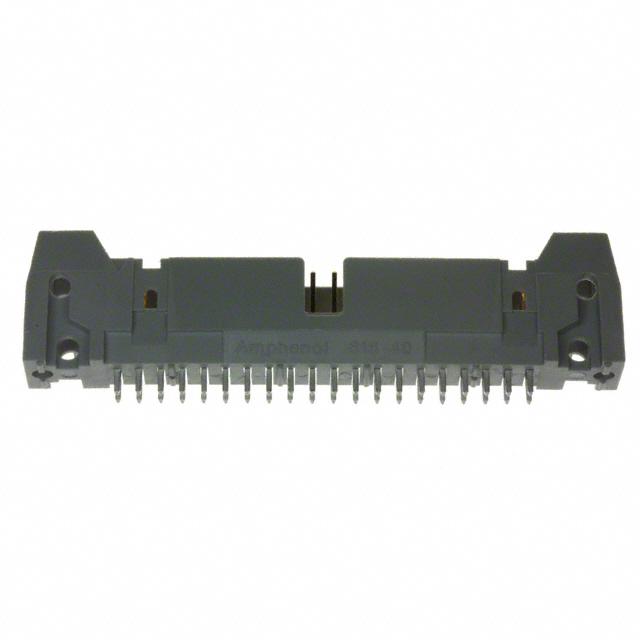

Amphenol ICC (Commercial Products) 8428164030035
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Solder Plated
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
40
Overall Contact Length:
-
Insulation Height:
0.690" (17.52mm)
Voltage Rating:
-
Shrouding:
Shrouded - 2 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Gray
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic, Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
0.109" (2.76mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
816
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
84281
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 8428164030035 on website for other similar products.
We accept all major payment methods for all products including ET17234470. Please check your shopping cart at the time of order.
You can order Amphenol ICC (Commercial Products) brand products with 8428164030035 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol ICC (Commercial Products) 8428164030035. You can also check on our website or by contacting our customer support team for further order details on Amphenol ICC (Commercial Products) 8428164030035.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17234470 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol ICC (Commercial Products)" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17234470.
Yes. We ship 8428164030035 Internationally to many countries around the world.
This is manufactured by Amphenol ICC (Commercial Products). The manufacturer part number is 8428164030035. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible solder plated contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 40. 0.690" (17.52mm) of insulation height. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, gray is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic, glass filled insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. 0.109" (2.76mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product 816, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 84281, a base product number of the product. The product is designated with the ear99 code number.
