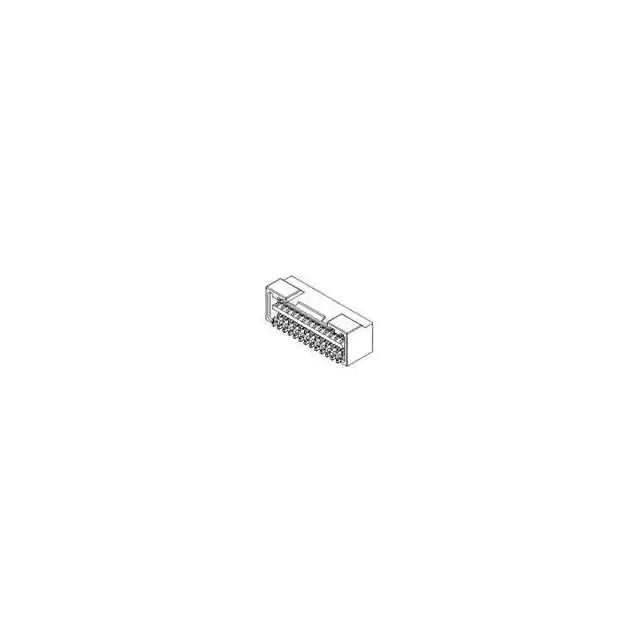

Molex Micro-Lock 504189, 1.25mm Pitch, 32 Way, 2 Row, Right Angle PCB Header, Surface Mount

504189-3270 Molex Micro-Lock 504189, 1.25mm Pitch, 32 Way, 2 Row, Right Angle PCB Header, Surface Mount
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
1.5A
Mounting Type:
Surface Mount
Series:
Micro-Lock
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Tin
Pitch:
1.25mm
Number of Contacts:
32
Contact Material:
Brass
HTSUS:
8536.69.4040
Package:
Tape & Reel (TR)
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Micro-Lock 504189 1.25mm Pitch 32 Way 2 Row Right Angle PCB Header Surface Mount manufactured by Molex. The manufacturer part number is 504189-3270. It is supplied as shrouded. The product has a current rating of 1.5a. The product is available in surface mount configuration. The product micro-lock, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 1.25mm. The product contains 32 contacts. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.69.4040. It is shipped in tape & reel (tr) package . The product is rohs non-compliant. In addition, it is reach info available upon request. Its typical moisture sensitivity level is vendor undefined. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Micro-Lock 1.25 Wire to Board Connector Dual SMT Right Angle Plug Header - Drawing(Technical Reference)
pdf icon
Micro-Lock 1.25mm Pitch SMT Wire-to-Board Positive Lock System - Brochure(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
