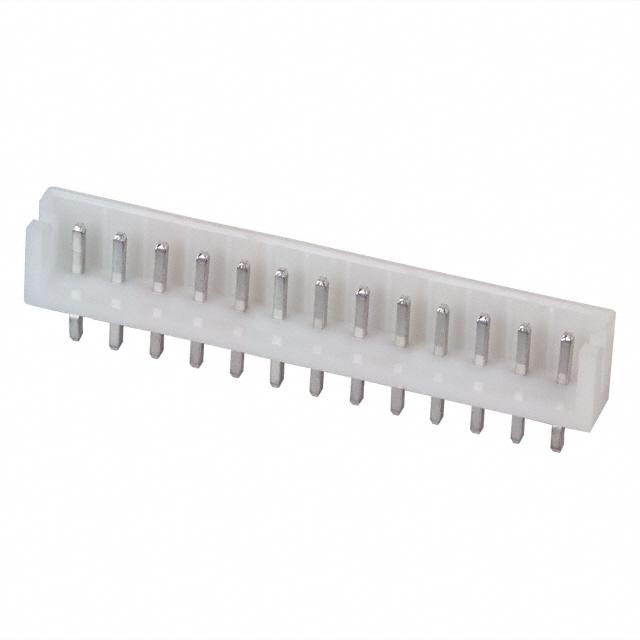

JST Sales America Inc. B13B-EH-A

B13B-EH-A JST Sales America Inc.
B13B-EH-A
JST Sales America Inc.

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
13
Overall Contact Length:
-
title:
B13B-EH-A
Insulation Height:
0.236" (6.00mm)
Insulation Color:
Natural
Shrouding:
Shrouded - 3 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
8.1mm
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.130" (3.30mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Friction Lock
Termination:
Press-Fit, Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
EH
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
B13B-EH
ECCN:
EAR99
Checking for live stock

This is manufactured by JST Sales America Inc.. The manufacturer part number is B13B-EH-A. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 13. 0.236" (6.00mm) of insulation height. In addition, natural is the insulation color of the product. Furthermore, a bespoke product features shrouded - 3 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 8.1mm. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. It is 0.130" (3.30mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, friction lock is the Fastening Type of the product. The product features press-fit, solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 3a. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole configuration. The product eh, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to b13b-eh, a base product number of the product. The product is designated with the ear99 code number.
