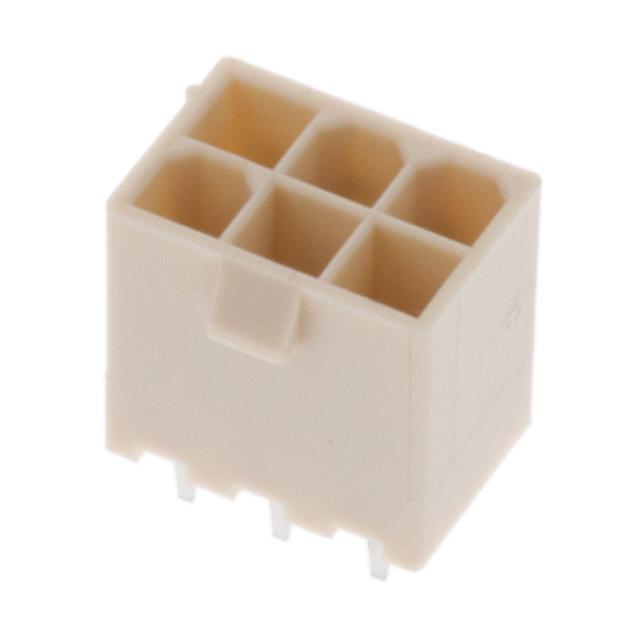

TE Connectivity AMP Connectors 4-1775099-1

4-1775099-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
120.0µin (3.05µm)
Number of Positions:
6
Contact Finish - Post:
Tin
edacadModel:
4-1775099-1 Models
Overall Contact Length:
-
title:
4-1775099-1
Insulation Height:
0.504" (12.80mm)
Insulation Color:
Ivory
REACH Status:
Vendor Undefined
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5272795
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
120.0µin (3.05µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
9A
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
ATX
Packaging:
Bulk
Insulation Material:
Polyamide (PA9T), Nylon 9T
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
1775099
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 4-1775099-1. It has nice contact finishing of tin. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -25°c ~ 85°c operating temperature range. Additionally, it features 120.0µin (3.05µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. 0.504" (12.80mm) of insulation height. In addition, ivory is the insulation color of the product. In addition, it is vendor undefined. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250vac voltage rating. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 120.0µin (3.05µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 9a. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The product is available in through hole configuration. The product atx, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa9t), nylon 9t insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 1775099, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
4-1775099-1(Datasheets)
