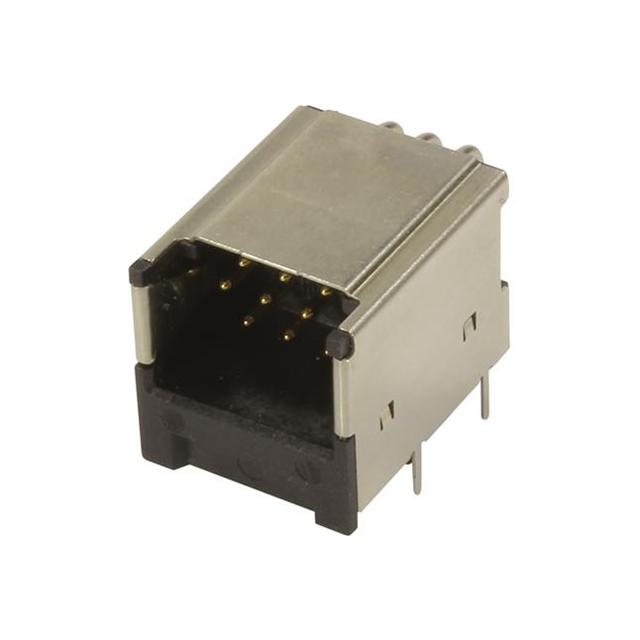

HARTING 09350026001
Product Information
Contact Finish - Mating:
Gold
Style:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.764" (19.40mm)
Voltage Rating:
50V
REACH Status:
REACH Unaffected
edacadModel:
09350026001 Models
Applications:
-
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/8033267
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Package:
Tray
Row Spacing - Mating:
0.094" (2.40mm)
Connector Type:
Header
Contact Length - Mating:
0.217" (5.50mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
2.5A
Contact Length - Post:
0.181" (4.60mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
Han® PushPull
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Polyamide (PA), Nylon
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09350026001 on website for other similar products.
We accept all major payment methods for all products including ET14753160. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09350026001 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09350026001. You can also check on our website or by contacting our customer support team for further order details on HARTING 09350026001.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14753160 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14753160.
Yes. We ship 09350026001 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09350026001. It has nice contact finishing of gold. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 10. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.764" (19.40mm) of insulation height. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. It comes in 3 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical circular shape. It is shipped in tray package . It carries 0.094" (2.40mm) of row spacing. header Connector type offer robust functionality. It is 0.217" (5.50mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 2.5a. 0.181" (4.60mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product han® pushpull, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. It has a robust polyamide (pa), nylon insulation material. The product is designated with the ear99 code number.
